• Controlled Baseline
  • One Assembly
  • One Test Site
  • One Fabrication Site
• Extended Temperature Performance of –55°C to 125°C
• Enhanced Diminishing Manufacturing Sources (DMS) Support
• Enhanced Product-Change Notification
• Qualification Pedigree⁽¹⁾
• Digital Visual Interface (DVI) Compliant⁽²⁾
• Supports Pixel Rates Up to 165MHz (Including 1080p and WUXGA at 60Hz)
• Universal Graphics Controller Interface
  • 12-Bit Dual-Edge and 24-Bit Single-Edge Input Modes
  • Adjustable 1.1-V to 1.8-V and Standard 3.3-V CMOS Input Signal Levels
  • Fully Differential and Single-Ended Input Clocking Modes
  • Standard Intel™ 12-Bit Digital Video Port Compatible as on Intel 81x Chipsets
• Enhanced PLL Noise Immunity
• On-Chip Regulators and Bypass Capacitors for Reducing System Costs
• Enhanced Jitter Performance
• No HSYNC Jitter Anomaly
• Negligible Data-Dependent Jitter
• Programmable Using I²C Serial Interface
• Monitor Detection Through Hot-Plug and Receiver Detection
• Single 3.3-V Supply Operation

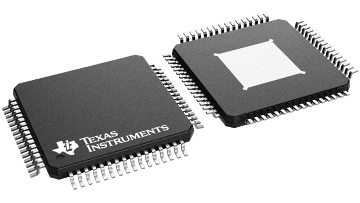

• 64-Pin Thin Quad Flat Pack (TQFP) Using TI’s PowerPAD™ Package
• TI Advanced 0.18-µm EPIC-5™ CMOS Process Technology
• Pin Compatible With SiI164 DVI Transmitter

⁽¹⁾ Component qualification in accordance with JEDEC and industry standards to ensure reliable operation over an extended temperature range. This includes, but is not limited to, Highly Accelerated Stress Test (HAST) or biased 85/85, temperature cycle, autoclave or unbiased HAST, electromigration, bond intermetallic life, and mold compound life. Such qualification testing should not be viewed as justifying use of this component beyond specified performance and environmental limits.
⁽²⁾ The digital visual interface (DVI) specification is an industry standard developed by the digital display working group (DDWG) for high-speed digital connection to digital displays and has been adopted by industry-leading PC and consumer electronics manufacturers. The TFP410 is compliant to the DVI Revision 1.0 specification.
PanelBus, PowerPAD, and EPIC-5 are trademarks of Texas Instruments.
VESA is a trademark of Video Electronics Standards Association.
Intel is a trademark of Intel Corporation.
