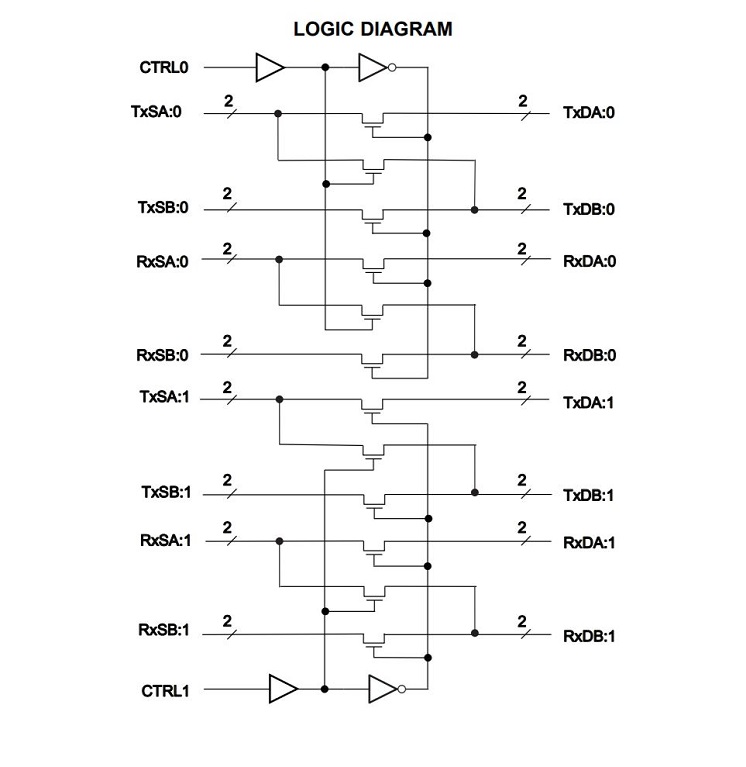

The TS2PCIE2212 can be used to muxltiplex/demultiplex two PCI Express™ lanes, each representing differential pairs of receive (RX) and transmit (TX) signals. The switch operates at the PCI Express bandwidth standard of 2.5-Gbps signal-processing speed. The device is composed of two banks, with each bank accommodating two sources (source A and source B) and two destinations (destination A and destination B).
When a logic-level low is applied to the control (CTRL) pin, source A is connected to destination A and source B is connected to destination B. When a logic-level high is applied to CTRL, source A is connected to destination B, while source B and destination A are open.
PCI Express is a trademark of PCI-SIG.
| Type | Passive mux |
| Protocols | PCIe1 |
| Applications | PCIe |
| Number of channels | 4 |
| Speed (max) (Gbps) | 2.5 |
| Supply voltage (V) | 1.8 |
| Rating | Catalog |
| Operating temperature range (°C) | 0 to 85 |

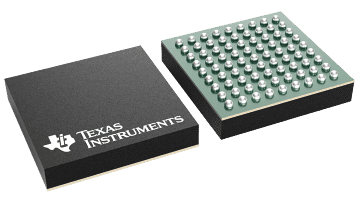

| NFBGA (ZAH) | 48 | 25 mm² 5 x 5 |
