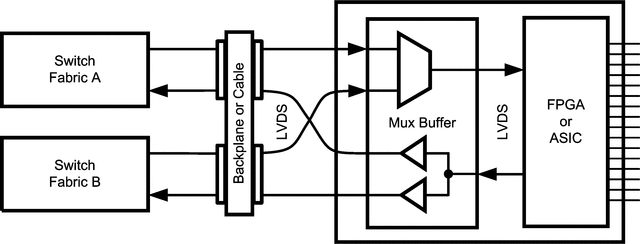

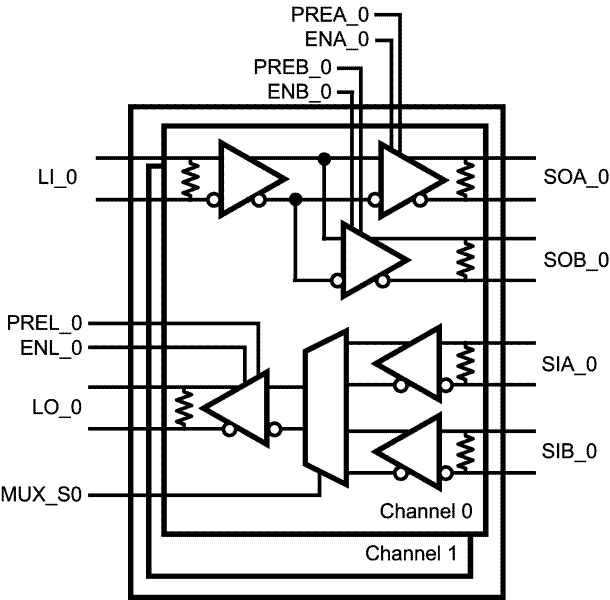

The DS15MB200 is a dual-port 2 to 1 multiplexer and 1 to 2 repeater/buffer. High-speed data paths and flow-through pinout minimize internal device jitter and simplify board layout, while pre-emphasis overcomes ISI jitter effects from lossy backplanes and cables. The differential inputs and outputs interface to LVDS or Bus LVDS signals such as those on Texas Instrument's 10-, 16-, and 18-bit Bus LVDS SerDes, or to CML or LVPECL signals.
The 3.3V supply, CMOS process, and robust I/O ensure high performance at low power over the entire industrial -40 to +85°C temperature range.
All trademarks are the property of their respective owners.
| Function | Mux buffer |
| Protocols | CML, LVDS, LVPECL |
| Number of transmitters | 2, 4 |
| Number of receivers | 2, 4 |
| Supply voltage (V) | 3.3 |
| Signaling rate (MBits) | 1500 |
| Input signal | BLVDS, CML, LVDS, LVPECL |
| Output signal | LVDS |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |

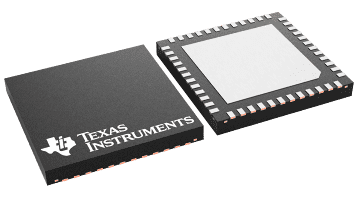

| WQFN (RHS) | 48 | 49 mm² 7 x 7 |
