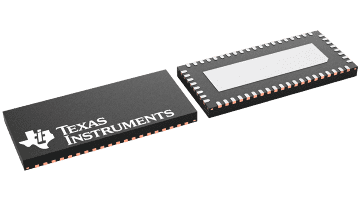

TS3DV520

正在供货

适用于 DVI 1.0/HDMI 1.2a 应用的 1.65Gbps 5 通道差动 10 至 20 和 20 至 10 多路复用器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The TS3DV520 is a 20-bit to 10-bit multiplexer/demultiplexer digital video switch with a single select (SEL) input. SEL controls the data path of the multiplexer/demultiplexer. The device provides five differential channels for digital video signal switching. This device can also be used to replace mechanical relays in LAN applications and allows for signals to be routed from a 10/100/1000 Base-T transceiver to the RJ-45 connectors in laptops or docking stations.

This device provides low and flat ON-state resistance (r_on) and excellent ON-state resistance match. Low input/output capacitance, high bandwidth, low skew, and low crosstalk among channels make this device suitable for various digital video applications, such as DVI and HDMI.

This device is fully specified for partial-power-down applications using I_off. The I_off feature ensures that damaging current will not backflow through the device when it is powered down. The device has isolation during power off.

Compatible With HDMI v1.2a (Type A) DVI 1.0 High-Speed Digital Interface
- Wide Bandwidth of Over 1.65 Gbps (Bandwidth 2.4 Gbps Typ)
- 165-MHz Speed Operation
- Serial Data Stream at 10× Pixel Clock Rate
- Supports All Video Formats up to 1080p and SXGA (1280 × 1024 at 75 Hz)
- Total Raw Capacity 4.95 Gbps (Single Link)
- HDCP Compatible
Low Crosstalk (X_TALK = –41 dB Typ)
Low Bit-to-Bit Skew (t_sk(o) = 0.1 ns Max)
Low and Flat ON-State Resistance
(r_on = 6 Max, r_on(flat) = 0.5 Typ)
Low Input/Output Capacitance
(C_ON = 7.8 pF Typ)
Rail-to-Rail Switching on Data I/O Ports (0 to 5 V)
V_CC Operating Range From 3 V to 3.6 V
I_off Supports Partial-Power-Down Mode Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD 22
- 2000-V Human-Body Model (A114-B, Class II)
- 1000-V Charged-Device Model (C101)
APPLICATIONS
- DVI/HDMI Signal Switching
- Differential DVI, HDMI Signal Multiplexing for Audio/Video Receivers
  and High-Definition Televisions (HDTVs)
- 10/100/1000 Base-T Signal Switching
- Hub and Router Signal Switching

Type	Mux
Protocols	DVI, HDMI, LVDS, SXGA, TMDS, VGA
Rating	Catalog
Speed (max) (Gbps)	4.9
Number of channels	10
Supply voltage (V)	3.3
Operating temperature range (°C)	-40 to 85

WQFN (RHU)

55 mm² 11 x 5
