DP83848C

正在供货

支持 SNI 接口和 JTAG、具有商业级温度范围的 10/100Mbps 以太网 PHY 收发器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The number of applications requiring Ethernet connectivity continues to increase, driving Ethernet enabled devices into harsher environments.

The DP83848C/I/VYB/YB was designed to meet the challenge of these new applications with an extended temperature performance that goes beyond the typical Industrial temperature range. The DP83848C/I/VYB/YB is a highly reliable, feature rich, robust device which meets IEEE 802.3 standards over multiple temperature ranges from commercial to extreme temperatures. This device is ideally suited for harsh environments such as wireless remote base stations, automotive/transportation, and industrial control applications.

It offers enhanced ESD protection and the choice of an MII or RMII interface for maximum flexibility in MPU selection; all in a 48 pin package.

The DP83848VYB extends the leadership position of the PHYTER™ family of devices with a wide operating temperature range. The TI line of PHYTER transceivers builds on decades of Ethernet expertise to offer the high performance and flexibility that allows the end user an easy implementation tailored to meet these application needs.

Multiple Temperature Range from –40°C to 105°C
Low-Power 3.3-V, 0.18-µm CMOS Technology
Low-Power Consumption < 270 mW Typical
3.3-V MAC Interface
Auto-MDIX for 10/100 Mb/s
Energy Detection Mode
25-MHz Clock Output
SNI Interface (Configurable)
RMII Rev. 1.2 Interface (Configurable)
MII Serial Management Interface (MDC and MDIO)
IEEE 802.3 MII
IEEE 802.3 Auto-Negotiation and Parallel
Detection
IEEE 802.3 ENDEC, 10BASE-T Transceivers and
Filters
IEEE 802.3 PCS, 100BASE-TX Transceivers and
Filters
IEEE 1149.1 JTAG
Integrated ANSI X3.263 Compliant TP-PMD
Physical Sub-Layer with Adaptive Equalization and
Baseline Wander Compensation
Error-Free Operation up to 150 Meters
Programmable LED Support for Link, 10/100 Mb/s
Mode, Activity, Duplex and Collision Detect
Single Register Access for Complete PHY Status
10/100 Mb/s Packet BIST (Built in Self Test)

Datarate (Mbps)	10/100
Interface type	MII, RMII, SNI
Number of ports	Single
Rating	Catalog
Features	Programmable LED support for link, 10/100 Mb/s mode, Activity, duplex and collision detect
Supply voltage (V)	3.3
I/O supply voltage (typ) (V)	3.3
Operating temperature range (°C)	0 to 70
Number of LEDs	3
ESD HBM (kV)	4

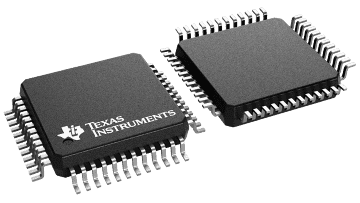

LQFP (PT)

81 mm² 9 x 9
