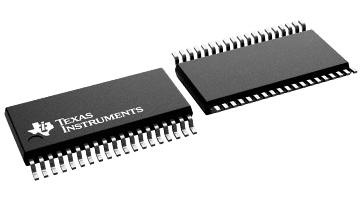

SN65LVDT250

正在供货

2.0Gbps 4x4 交叉点开关

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The SN65LVDS250 and SN65LVDT250 are 4x4 nonblocking crosspoint switches in a flow-through pin-out allowing for ease in PCB layout. Low-voltage differential signaling (LVDS) is used to achieve a high-speed data throughput while using low power. Each of the output drivers includes a 4:1 multiplexer to allow any input to be routed to any output. Internal signal paths are fully differential to achieve the high signaling speeds while maintaining low signal skews. The SN65LVDT250 incorporates 110- termination resistors for those applications where board space is a premium.

The SN65LVDS250 and SN65LVDT250 are characterized for operation from –40°C to 85°C.

Greater Than 2.0 Gbps Operation
Nonblocking Architecture Allows Each Output to be Connected to Any Input
Pk.Pk Jitter:
- 60 ps Typical at 2.0 Gbps
- 110 ps Typical at 2.5 Gbps
Compatible With ANSI TIA/EIA-644-A LVDS Standard
Available Packaging 38-Pin TSSOP
25 mV of Input Voltage Threshold Hysteresis
Propagation Delay Times: 800 ps Typical
Inputs Electrically Compatible With LVPECL, CML and LVDS Signal Levels
Operates From a Single 3.3-V Supply
Low Power: 110 mA Typical
Integrated 110- Line Termination Resistors Available With SN65LVDT250
APPLICATIONS
- Clock Buffering/Clock Muxing
- Wireless Base Stations
- High-Speed Network Routing
- Telecom/Datacom

Function	Crosspoint
Protocols	CML, LVDS, LVPECL
Number of transmitters	4
Number of receivers	4
Supply voltage (V)	3.3
Signaling rate (MBits)	2000
Input signal	CML, LVDS, LVPECL
Output signal	LVDS
Rating	Catalog
Operating temperature range (°C)	-40 to 85

TSSOP (DBT)

62.08 mm² 9.7 x 6.4
