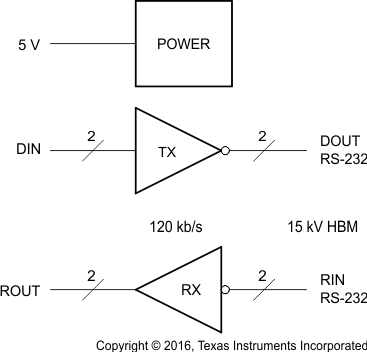

The MAX202 device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 5-V supply. The device operates at data signaling rates up to 120 kbit/s and a maximum of 30-V/µs driver output slew rate.
| Drivers per package | 2 |
| Receivers per package | 2 |
| Logic voltage (min) (V) | 5 |
| Data rate (max) (Mbps) | 0.12 |
| Main supply voltage (nom) (V) | 5 |
| ESD HBM (kV) | 15 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| Vout (typ) (V) | 9 |
| SOIC (D) | 16 | 59.4 mm² 9.9 x 6 |
| SOIC (DW) | 16 | 106.09 mm² 10.3 x 10.3 |
| TSSOP (PW) | 16 | 32 mm² 5 x 6.4 |
