The MAX211 device consists of four line drivers, five line receivers, and a dual charge-pump circuit with ±15-kV ESD protection pin to pin (serial-port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 5-V supply. The devices operate at data signaling rates up to 120 kbit/s and a maximum of 30-V/µs driver output slew rate.
The MAX211 has both shutdown (SHDN) and enable control (EN). In shutdown mode, the charge pumps are turned off, V+ is pulled down to VCC, V is pulled to GND, and the transmitter outputs are disabled. This reduces supply current typically to 1 µA. EN is used to put the receiver outputs into the high-impedance state to allow wired-OR connection of two RS-232 ports. It has no effect on the RS-232 drivers or the charge pumps.
| Drivers per package | 4 |
| Receivers per package | 5 |
| Logic voltage (min) (V) | 5 |
| Data rate (max) (Mbps) | 0.12 |
| Main supply voltage (nom) (V) | 5 |
| ESD HBM (kV) | 15 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| Vout (typ) (V) | 9 |

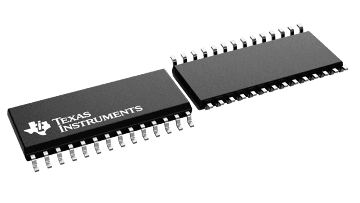

| SOIC (DW) | 28 | 184.37 mm² 17.9 x 10.3 |

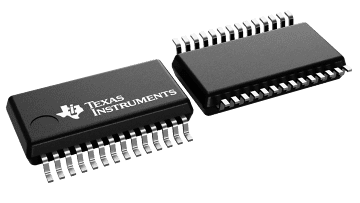

| SSOP (DB) | 28 | 79.56 mm² 10.2 x 7.8 |
