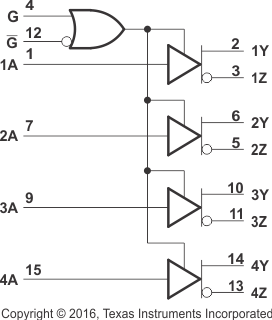

The AM26C31 device is a differential line driver with complementary outputs, designed to meet the requirements of TIA/EIA-422-B and ITU (formerly CCITT). The 3-state outputs have high-current capability for driving balanced lines, such as twisted-pair or parallel-wire transmission lines, and they provide the high-impedance state in the power-off condition. The enable functions are common to all four drivers and offer the choice of an active-high (G) or active-low (G) enable input. BiCMOS circuitry reduces power consumption without sacrificing speed.
The AM26C31C device is characterized for operation from 0°C to 70°C, the AM26C31I device is characterized for operation from –40°C to 85°C, the AM26C31Q device is characterized for operation over the automotive temperature range of –40°C to 125°C, and the AM26C31M device is characterized for operation over the full military temperature range of –55°C to 125°C.
| Number of receivers | 0 |
| Number of transmitters | 4 |
| Duplex | Half |
| Supply voltage (nom) (V) | 4 |
| Signaling rate (max) (MBits) | 10 |
| IEC 61000-4-2 contact (±V) | None |
| Fault protection (V) | -14 to 14 |
| Common-mode range (V) | -7 to 7 |
| Number of nodes | 32 |
| Isolated | No |
| Supply current (max) (µA) | 3200 |
| Rating | Military |
| Operating temperature range (°C) | -55 to 125 |
| CDIP (J) | 16 | 135.3552 mm² 19.56 x 6.92 |

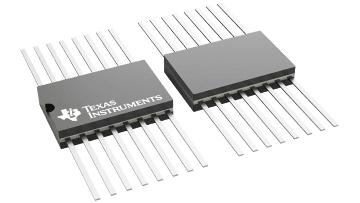

| CFP (W) | 16 | 69.319 mm² 10.3 x 6.73 |
| LCCC (FK) | 20 | 79.0321 mm² 8.89 x 8.89 |
