The SN55LBC175 is a monolithic quadruple differential line receiver with 3-state outputs and is designed to meet the requirements of the EIA Standards RS-422-A, RS-423-A, RS-485, and CCITT V.11. This device is optimized for balanced multipoint bus transmission at data rates up to and exceeding 10 million bits per second. The receivers are enabled in pairs with an active-high enable input. Each differential receiver input features high impedance, hysteresis for increased noise immunity, and sensitivity of ±200 mV over a common-mode input voltage range of 12 V to -7 V. Fail-safe design ensures that if the inputs are open-circuited, the outputs are always high. This device is designed using the Texas Instruments proprietary LinBiCMOSTM technology allowing low power consumption, high switching speeds, and robustness.

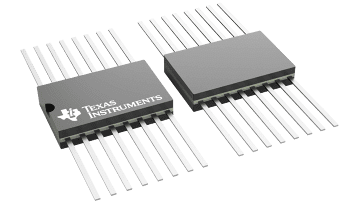

This device offers optimum performance when used with the SN55LBC174 quadruple line driver. The SN55LBC175 is available in the 16-pin CDIP (J) package, a 16-pin CPAK (W) package, or a 20-pin LCCC (FK) package.
The SN55LBC175 is characterized over the military temperature range of -55°C to 125°C.
LinBiCMOS is a trademark of Texas Instruments.
| Number of receivers | 4 |
| Number of transmitters | 0 |
| Supply voltage (nom) (V) | 5 |
| Signaling rate (max) (MBits) | 10 |
| Fault protection (V) | -10 to 15 |
| Common-mode range (V) | -7 to 12 |
| Number of nodes | 32 |
| Isolated | No |
| Supply current (max) (µA) | 11000 |
| Rating | Military |
| Operating temperature range (°C) | -55 to 125 |
| CDIP (J) | 16 | 135.3552 mm² 19.56 x 6.92 |
| CFP (W) | 16 | 69.319 mm² 10.3 x 6.73 |
| LCCC (FK) | 20 | 79.0321 mm² 8.89 x 8.89 |
