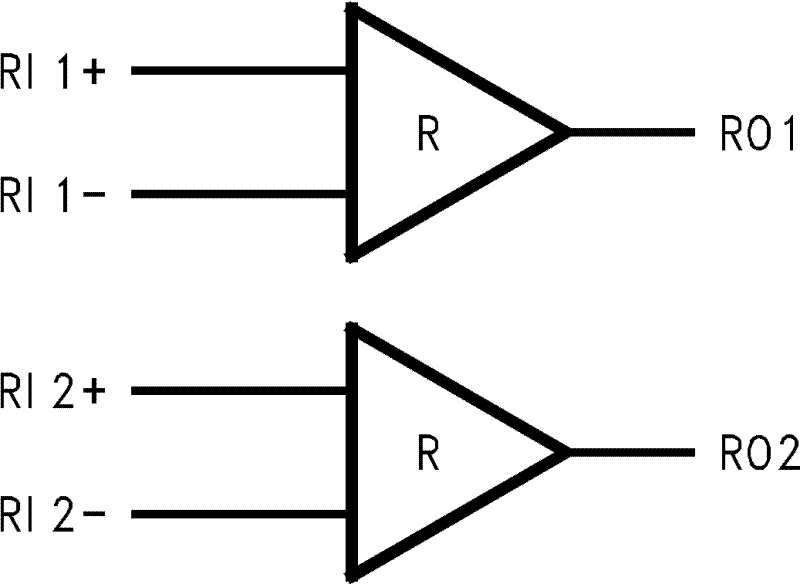

The DS90C402 is a dual receiver device optimized for high data rate and low power applications. This device along with the DS90C401 provides a pair chip solution for a dual high speed point-to-point interface. The device is in a PCB space saving 8 lead small outline package. The receiver offers ±100 mV threshold sensitivity, in addition to common-mode noise protection.
All trademarks are the property of their respective owners.
| Function | Receiver |
| Protocols | LVDS |
| Number of transmitters | 0 |
| Number of receivers | 2 |
| Supply voltage (V) | 5 |
| Signaling rate (MBits) | 155.5 |
| Input signal | LVDS |
| Output signal | TTL |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
