OPAx354-Q1 系列高速电压反馈 CMOS 运算放大器专为视频应用和其他需要宽带宽的 应用 而设计。这些器件具有单位增益稳定性,可以驱动大型输出电流。差分增益为 0.02%,而差分相位为 0.09°。静态电流仅为每通道 4.9mA。

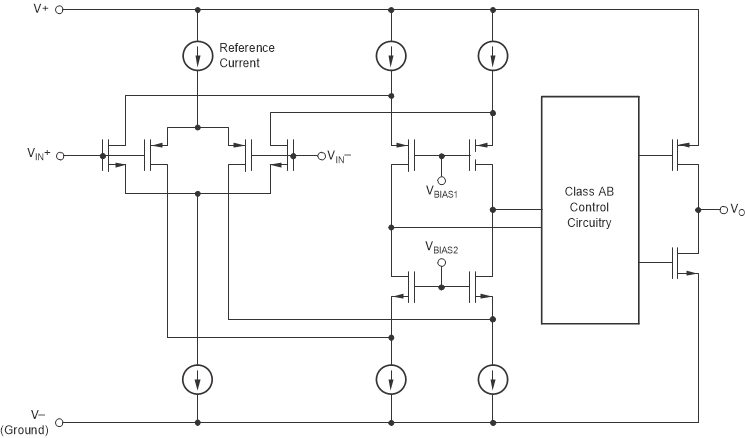

OPAx354-Q1 系列运算放大器针对低至 2.5V (±1.25V) 和高达 5.5V (±2.75V) 的单电源或双电源供电运行进行了优化。共模输入范围超出电源供电范围。电源轨的输出摆幅在 100mV 以内,从而支持宽动态范围。
单电源版本 (OPA354A-Q1) 可提供微型 SOT–23-5 (DBV) 封装。双电源版本 (OPA2354A-Q1) 可提供微型 VSSOP-8 (DGK) 封装并 采用 完全独立的电路,可将串扰降到最低并彻底消除相互干扰。双电源版本 (OPA4354-Q1) 可提供 TSSOP-14 (PW) 封装。该器件的规格支持在 –40°C 至 +125°C 的汽车温度范围内运行。
| Architecture | FET / CMOS Input, Voltage FB |
| Number of channels | 4 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) | 2.5 |
| Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) | 5.5 |
| GBW (typ) (MHz) | 100 |
| BW at Acl (MHz) | 250 |
| Acl, min spec gain (V/V) | 1 |
| Slew rate (typ) (V/µs) | 150 |
| Vn at flatband (typ) (nV√Hz) | 6.5 |
| Vn at 1 kHz (typ) (nV√Hz) | 6.5 |
| Iq per channel (typ) (mA) | 4.9 |
| Vos (offset voltage at 25°C) (max) (mV) | 8 |
| Rail-to-rail | In, Out |
| Rating | Automotive |
| Operating temperature range (°C) | -40 to 125 |
| CMRR (typ) (dB) | 80 |
| Input bias current (max) (pA) | 50 |
| Offset drift (typ) (µV/°C) | 4 |
| Iout (typ) (mA) | 100 |
| 2nd harmonic (dBc) | 75 |
| 3rd harmonic (dBc) | 83 |
| Frequency of harmonic distortion measurement (MHz) | 1 |
| TSSOP (PW) | 14 | 32 mm² 5 x 6.4 |
