The TIR1000x serial infrared (SIR) encoder and decoder is a CMOS device that encodes and decodes bit data in conformance with the IrDA specification.
A transceiver device is needed to interface to the photo-sensitive diode (PIN) and the light emitting diode (LED). A UART is needed to interface to the serial data lines.
| Number of channels | 1 |
| FIFO (Byte) | 0 |
| Programmable FIFO trigger levels | No |
| CPU interface | IR to UART |
| Baud rate at Vcc = 3.3 V & with 16x sampling (max) (MBps) | 0.115 |
| Baud rate at Vcc = 5 V & with 16x sampling (max) (MBps) | 0.115 |
| Operating voltage (V) | 2.7 to 5.5 |
| Auto RTS/CTS | No |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |

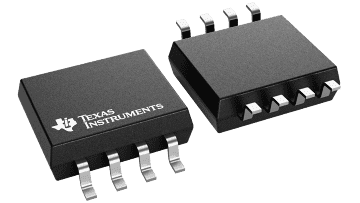

| SOP (PS) | 8 | 48.36 mm² 6.2 x 7.8 |
| TSSOP (PW) | 8 | 19.2 mm² 3 x 6.4 |
