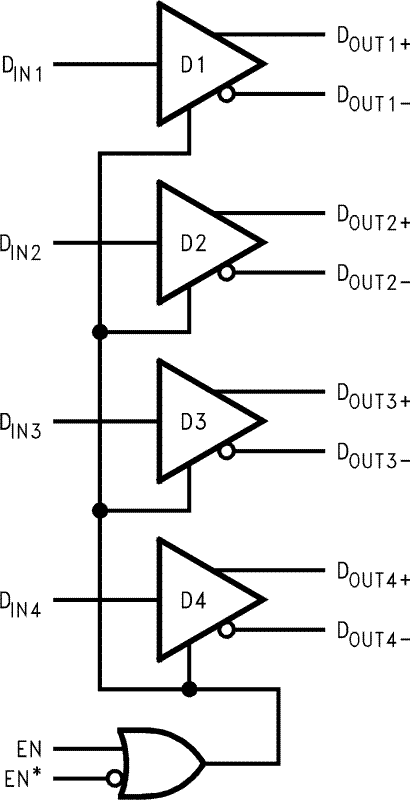

The DS90C031 is a quad CMOS differential line driver designed for applications requiring ultra low power dissipation and high data rates. The device is designed to support data rates in excess of 155.5 Mbps (77.7 MHz) utilizing Low Voltage Differential Signaling (LVDS) technology.
The DS90C031 accepts TTL/CMOS input levels and translates them to low voltage (350 mV) differential output signals. In addition the driver supports a TRI-STATE® function that may be used to disable the output stage, disabling the load current, and thus dropping the device to an ultra low idle power state of 11 mW typical.

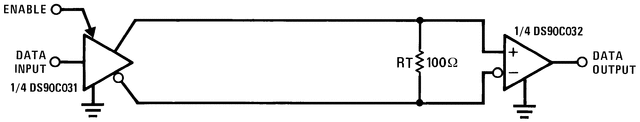

The DS90C031 and companion line receiver (DS90C032) provide a new alternative to high power psuedo-ECL devices for high speed point-to-point interface applications.
| Function | Driver |
| Protocols | LVDS |
| Number of transmitters | 4 |
| Number of receivers | 0 |
| Supply voltage (V) | 5 |
| Signaling rate (MBits) | 155.5 |
| Input signal | CMOS, TTL |
| Output signal | LVDS |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| SOIC (D) | 16 | 59.4 mm² 9.9 x 6 |
