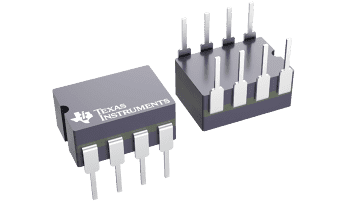

DS9638QML

正在供货

RS-422 双路高速差分线路驱动器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The DS9638 is a Schottky, TTL compatible, dual differential line driver designed specifically to meet the EIA Standard RS-422 specifications. It is designed to provide unipolar differential drive to twisted pair or parallel wire transmission lines. The inputs are TTL compatible. The outputs are similar to totem pole TTL outputs, with active pull-up and pull-down. The device features a short circuit protected active pull-up with low output impedance and is specified to drive 50Ω transmission lines at high speed. The mini-CDIP provides high package density.

Single 5V Supply
Schottky Technology
TTL and CMOS Compatible Inputs
Output Short Circuit Protection
Input Clamp Diodes
Complementary Outputs
Minimum Output Skew (<1.0 ns Typical)
50 mA Output Drive Capability for 50Ω Transmission Lines
Meets EIA RS-422 Specifications
Propagation Delay of Less than 10 ns
“Glitchless” Differential Output
Delay Time Stable with V_CC and Temperature Variations (<2.0 ns typical) ()
Extended Temperature Range

All trademarks are the property of their respective owners.

Number of receivers	0
Number of transmitters	2
Duplex	Half
Supply voltage (nom) (V)	5
Signaling rate (max) (MBits)	10
Fault protection (V)	-15 to 15
Common-mode range (V)	-7 to 7
Number of nodes	32
Isolated	No
Supply current (max) (µA)	65000
Rating	Military
Operating temperature range (°C)	-55 to 125

CDIP (NAB)

79.9592 mm² 10.16 x 7.87
