The DS26F31M is a quad differential line driver designed for digital data transmission over balanced lines. The DS26F31M meets all the requirements of EIA Standard RS-422 and Federal Standard 1020. It is designed to provide unipolar differential drive to twisted-pair or parallel-wire transmission lines.
The DS26F31M offers improved performance due to the use of state-of-the-art L-FAST bipolar technology. The L-FAST technology allows for higher speeds and lower currents by utilizing extremely short gate delay times. Thus, the DS26F31M features lower power, extended temperature range, and improved specifications.
The circuit provides an enable and disable function common to all four drivers. The DS26F31M features TRI-STATE outputs and logical OR-ed complementary enable inputs. The inputs are all LS compatible and are all one unit load.

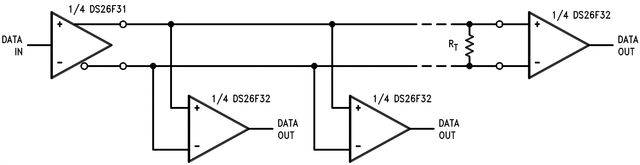

The DS26F31M offers optimum performance when used with the DS26F32 Quad Differential Line Receiver.
All trademarks are the property of their respective owners.
| Number of receivers | 0 |
| Number of transmitters | 4 |
| Duplex | Half |
| Supply voltage (nom) (V) | 5 |
| Signaling rate (max) (MBits) | 10 |
| Fault protection (V) | -7 to 7 |
| Common-mode range (V) | -6 to 6 |
| Number of nodes | 10 |
| Isolated | No |
| Supply current (max) (µA) | 40000 |
| Rating | Military |
| Operating temperature range (°C) | -55 to 125 |

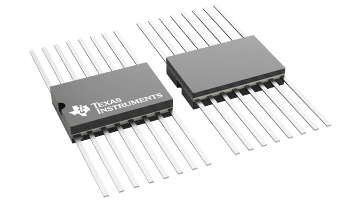

| CFP (NAD) | 16 | 62.9285 mm² 9.91 x 6.35 |

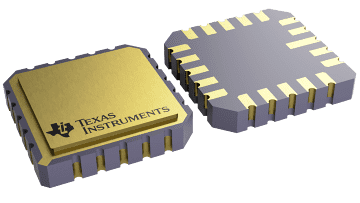

| LCCC (NAJ) | 20 | 79.0321 mm² 8.89 x 8.89 |
