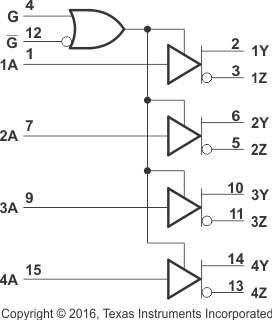

The AM26C31 device is a differential line driver with complementary outputs, designed to meet the requirements of TIA/EIA-422-B and ITU (formerly CCITT). The 3-state outputs have high-current capability for driving balanced lines, such as twisted-pair or parallel-wire transmission lines, and they provide the high-impedance state in the power-off condition. The enable functions are common to all four drivers and offer the choice of an active-high (G) or active-low (G) enable input. BiCMOS circuitry reduces power consumption without sacrificing speed.
The AM26C31C device is characterized for operation from 0°C to 70°C, the AM26C31I device is characterized for operation from –40°C to 85°C, the AM26C31Q device is characterized for operation over the automotive temperature range of –40°C to 125°C, and the AM26C31M device is characterized for operation over the full military temperature range of –55°C to 125°C.
| Number of receivers | 0 |
| Number of transmitters | 4 |
| Duplex | Half |
| Supply voltage (nom) (V) | 5 |
| Signaling rate (max) (MBits) | 10 |
| IEC 61000-4-2 contact (±V) | None |
| Fault protection (V) | -14 to 14 |
| Common-mode range (V) | -7 to 7 |
| Number of nodes | 32 |
| Isolated | No |
| Supply current (max) (µA) | 3000 |
| Rating | Automotive, Catalog |
| Operating temperature range (°C) | -40 to 125 |
| PDIP (N) | 16 | 181.42 mm² 19.3 x 9.4 |
| SOIC (D) | 16 | 59.4 mm² 9.9 x 6 |
| SOP (NS) | 16 | 79.56 mm² 10.2 x 7.8 |
| SSOP (DB) | 16 | 48.36 mm² 6.2 x 7.8 |
| TSSOP (PW) | 16 | 32 mm² 5 x 6.4 |
