The SN75158 is a dual differential line driver designed to satisfy the requirements set by the ANSI EIA/TIA-422-B and ITU V.11 interface specifications. The outputs provide complementary signals with high-current capability for driving balanced lines, such as twisted pair, at normal line impedance without high power dissipation. The output stages are TTL totem-pole outputs providing a high-impedance state in the power-off condition.
The SN75158 is characterized for operation from 0°C to 70°C.
| Number of receivers | 0 |
| Number of transmitters | 2 |
| Supply voltage (nom) (V) | 5 |
| Signaling rate (max) (MBits) | 10 |
| IEC 61000-4-2 contact (±V) | None |
| Fault protection (V) | -10 to 15 |
| Common-mode range (V) | -7 to 7 |
| Number of nodes | 32 |
| Isolated | No |
| Supply current (max) (µA) | 50000 |
| Rating | Catalog |
| Operating temperature range (°C) | 0 to 70 |
| PDIP (P) | 8 | 92.5083 mm² 9.81 x 9.43 |

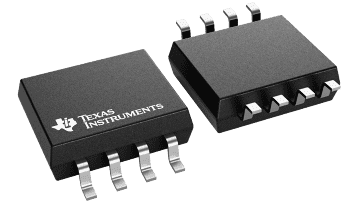

| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
| SOP (PS) | 8 | 48.36 mm² 6.2 x 7.8 |
