The SN75ALS191 is a dual, high-speed, differential line driver designed to meet ANSI Standard EIA/TIA-422-B and ITU Recommendation V.11. The inputs are TTL- and CMOS-compatible and have input clamp diodes. Schottky-diode-clamped transistors minimizes propagation delay time. This device operates from a single 5-V power supply and is supplied in 8-pin packages.
The SN75ALS191 is characterized for operation from 0°C to 70°C.
| Number of receivers | 0 |
| Number of transmitters | 2 |
| Supply voltage (nom) (V) | 5 |
| Signaling rate (max) (MBits) | 20 |
| IEC 61000-4-2 contact (±V) | None |
| Fault protection (V) | -12 to 12 |
| Common-mode range (V) | 0.8 to 2 |
| Number of nodes | 32 |
| Isolated | No |
| Supply current (max) (µA) | 40000 |
| Rating | Catalog |
| Operating temperature range (°C) | 0 to 70 |

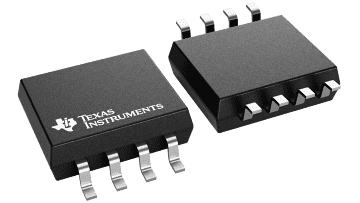

| PDIP (P) | 8 | 92.5083 mm² 9.81 x 9.43 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
| SOP (PS) | 8 | 48.36 mm² 6.2 x 7.8 |
