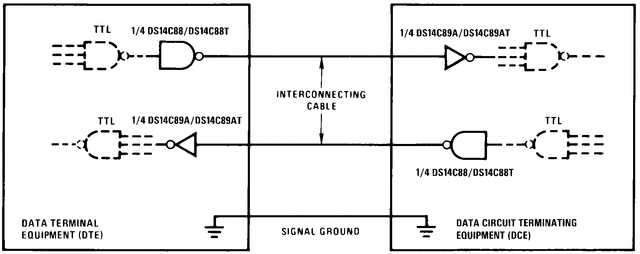

The DS14C88, pin-for-pin compatible to the DS1488/MC1488, is a quad line drivers designed to interface data terminal equipment (DTE) with data circuit-terminating equipment (DCE). This device translates standard TTL/CMOS logic levels to levels conforming to EIA-232-D and CCITT V.28 standards.
The device is fabricated in low threshold CMOS metal gate technology. The device provides very low power consumption compared to its bipolar equivalents: 500 μA (DS14C88) versus 25 mA (DS1488).
The DS14C88 simplifies designs by eliminating the need for external slew rate control capacitors. Slew rate control in accordance with EIA-232D is provided on-chip, eliminating the output capacitors.
All trademarks are the property of their respective owners.
| Drivers per package | 4 |
| Receivers per package | 0 |
| Logic voltage (min) (V) | 5 |
| Data rate (max) (Mbps) | 0.12 |
| Main supply voltage (nom) (V) | 5, 12 |
| ESD HBM (kV) | 1 |
| Rating | Catalog |
| Operating temperature range (°C) | 0 to 70 |
| Vout (typ) (V) | 10.5 |
| SOIC (D) | 14 | 51.9 mm² 8.65 x 6 |
