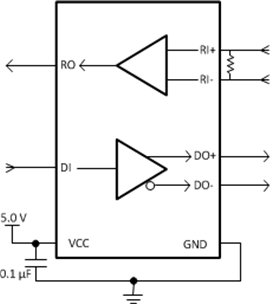

The DS8921, DS8921A, and DS8921AT devices are differential line driver and receiver pairs designed specifically for applications meeting the ST506, ST412, and ESDI disk drive standards. In addition, these devices meet the requirements of the EIA standard RS-422.
The DS8921x receivers offer an input sensitivity of 200 mV over a &plsumn;7 V common mode operating range. Hysteresis is incorporated (typically 70 mV) to improve noise margin for slowly changing input waveforms.
The DS8921x drivers are designed to provide unipolar differential drive to twisted-pair or parallel wire transmission lines. Complementary outputs are logically ANDed and provide an output skew of 0.5 ns (typical) with propagation delays of 12 ns.
The DS8921x devices are designed to be compatible with TTL and CMOS.
| Number of receivers | 1 |
| Number of transmitters | 1 |
| Duplex | Full |
| Supply voltage (nom) (V) | 5 |
| Signaling rate (max) (MBits) | 10 |
| IEC 61000-4-2 contact (±V) | None |
| Fault protection (V) | -12 to 12 |
| Common-mode range (V) | -7 to 7 |
| Number of nodes | 32 |
| Isolated | No |
| Supply current (max) (µA) | 35000 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |
| SOIC (D) | 8 | 29.4 mm² 4.9 x 6 |
