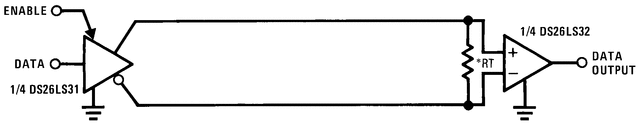

The DS26LS31MQML is a quad differential line driver designed for digital data transmission over balanced lines. The DS26LS31MQML meets all the requirements of EIA Standard RS-422 and Federal Standard 1020. It is designed to provide unipolar differential drive to twisted-pair or parallel-wire transmission lines.
The circuit provides an enable and disable function common to all four drivers. The DS26LS31MQML features TRI-STATE outputs and logically ANDed complementary outputs. The inputs are all LS compatible and are all one unit load.
The DS26LS31 features a power up/down protection circuit which keeps the output in a high impedance state (TRI-STATE) during power up or down preventing erroneous glitches on the transmission lines.
All trademarks are the property of their respective owners.
| Number of receivers | 0 |
| Number of transmitters | 4 |
| Duplex | Half |
| Supply voltage (nom) (V) | 5 |
| Signaling rate (max) (MBits) | 10 |
| Fault protection (V) | -0.5 to 7 |
| Common-mode range (V) | -7 to 7 |
| Number of nodes | 32 |
| Isolated | No |

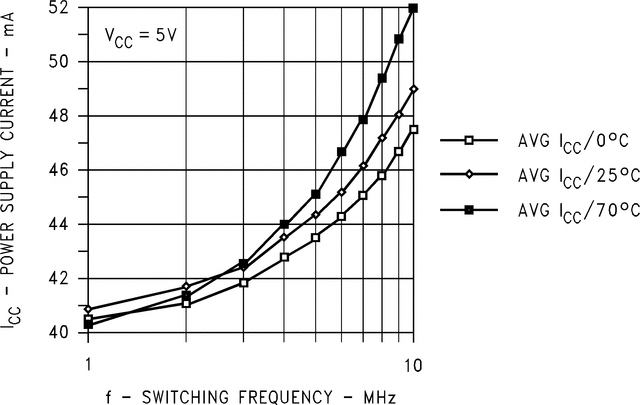

| Supply current (max) (µA) | 60000 |
| Rating | Military |
| Operating temperature range (°C) | -55 to 125 |

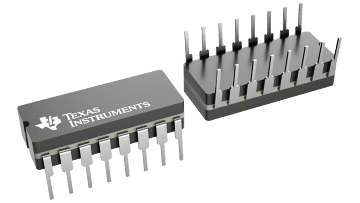

| CDIP (NFE) | 16 | 134.209409 mm² 6.731 x 19.939 |

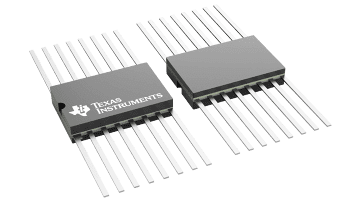

| CFP (NAD) | 16 | 62.9285 mm² 9.91 x 6.35 |

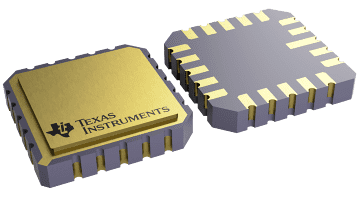

| LCCC (NAJ) | 20 | 79.0321 mm² 8.89 x 8.89 |
