The UCC2154x is an isolated dual channel gate driver family designed with up to 4-A/6-A peak source/sink current to drive power MOSFET, IGBT, and GaN transistors. UCC2154x in DWK package also offers 3.3-mm minimum channel-to-channel spacing which facilitates higher bus voltage.
The UCC2154xfamily can be configured as two low-side drivers, two high-side drivers, or a half-bridge driver. The input side is isolated from the two output drivers by a 5.7-kVRMS isolation barrier, with a minimum of 100-V/ns common-mode transient immunity (CMTI).
Protection features include: resistor programmable dead time, disable feature to shut down both outputs simultaneously, integrated de-glitch filter that rejects input transients shorter than 5ns, and negative voltage handling for up to –2V spikes for 200ns on input and output pins. All supplies have UVLO protection.
| Number of channels | 2 |
| Isolation rating | Reinforced |
| Withstand isolation voltage (VISO) (Vrms) | 5700 |
| Working isolation voltage (VIOWM) (Vrms) | 1414 |
| Transient isolation voltage (VIOTM) (VPK) | 8000 |
| Power switch | IGBT, MOSFET |
| Peak output current (A) | 6 |
| Features | Disable, Programmable dead time |
| Output VCC/VDD (max) (V) | 18 |
| Output VCC/VDD (min) (V) | 6 |
| Input VCC (min) (V) | 3 |
| Input VCC (max) (V) | 5.5 |
| Propagation delay time (µs) | 0.028 |
| Input threshold | CMOS, TTL |
| Operating temperature range (°C) | -40 to 125 |
| Rating | Catalog |
| Bus voltage (max) (V) | 1414 |
| Rise time (ns) | 5 |
| Fall time (ns) | 6 |
| Undervoltage lockout (typ) (V) | 5 |

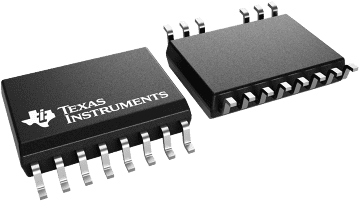

| SOIC (DW) | 16 | 106.09 mm² 10.3 x 10.3 |
| SOIC (DWK) | 14 | 106.09 mm² 10.3 x 10.3 |
