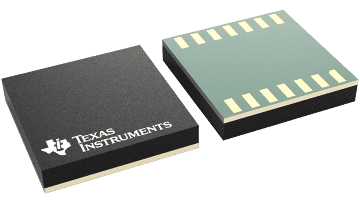

UCC21225A

UCC21225A

正在供货

具有双输入、5V UVLO 且采用 LGA 封装的 2.5kVrms、4A/6A 双通道隔离式栅极驱动器

产品详情
  • 说明
  • 特性
  • 参数
  • 封装 | 引脚 | 尺寸

The UCC21225A is an isolated dual-channel gate driver with 4-A source and 6-A sink peak current in a 5-mm x 5-mm LGA-13 package. It is designed to drive power transistors up to 5-MHz with best-in-class propagation delay and pulse-width distortion.

The input side is isolated from the two output drivers by a 2.5-kVRMS isolation barrier, with 100-V/ns minimum common-mode transient immunity (CMTI). Internal functional isolation between the two secondary side drivers allows working voltage up to 700-VDC.

This driver can be configured as two low-side, two high-side, or a half-bridge driver with programmable dead time (DT). A disable pin shuts down both outputs simultaneously when it is set high, and allows normal operation when left open or grounded.

The device accepts VDD supply voltages up to 25-V. A wide input VCCI range from 3-V to 18-V makes the driver suitable for interfacing with both analog and digital controllers. All the supply voltage pins have under voltage lock-out (UVLO) protection.

With all these advanced features, the UCC21225A enables high power density, high efficiency, and robustness in a wide variety of power applications.

  • Universal: Dual Low-Side, Dual High-Side or Half-Bridge Driver
  • 5 x 5 mm, Space-Saving LGA-13 Package
  • Switching Parameters:
    • 19-ns Typical Propagation Delay
    • 5-ns Maximum Delay Matching
    • 6-ns Maximum Pulse-Width Distortion
  • CMTI Greater than 100-V/ns
  • 4-A Peak Source, 6-A Peak Sink Output
  • TTL and CMOS Compatible Inputs
  • 3-V to 18-V Input VCCI Range
  • Up to 25-V VDD with 5-V UVLO
  • Programmable Overlap and Dead Time
  • Rejects Input Transients Shorter than 5-ns
  • Fast Disable for Power Sequencing
  • Safety-Related Certifications:
    • 3535-VPK Isolation per DIN V VDE V 0884-11:2017-01
    • 2500-VRMS Isolation for 1 Minute per UL 1577
    • CQC per GB4943.1-2011 (Planned)
Number of channels2
Isolation ratingFunctional
Withstand isolation voltage (VISO) (Vrms)2500
Working isolation voltage (VIOWM) (Vrms)792
Transient isolation voltage (VIOTM) (VPK)3535
Power switchIGBT, MOSFET, SiCFET
Peak output current (A)6
FeaturesDisable, Programmable dead time
Output VCC/VDD (max) (V)25
Output VCC/VDD (min) (V)6.5
Input VCC (min) (V)3
Input VCC (max) (V)18
Propagation delay time (µs)0.019
Input thresholdCMOS, TTL
Operating temperature range (°C)-40 to 125
RatingCatalog
Bus voltage (max) (V)792
Rise time (ns)6
Fall time (ns)7
Undervoltage lockout (typ) (V)5
VLGA (NPL)1325 mm² 5 x 5
