The AUP family is TI’s premier solution to the industry's low-power needs in battery-powered portable applications. This family ensures a very low static- and dynamic-power consumption across the entire VCC range of 0.8 V to 3.6 V, resulting in increased battery life (see ). This product also maintains excellent signal integrity.
When data at the data (D) input meets the setup time requirement, the data is transferred to the Q output on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of the clock pulse. Following the hold-time interval, data at the D input can be changed without affecting the levels at the outputs.
NanoStar™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
NanoStar is a trademark of Texas Instruments.
| Number of channels | 2 |
| Technology family | AUP |
| Supply voltage (min) (V) | 0.8 |
| Supply voltage (max) (V) | 3.6 |
| Input type | Standard CMOS |
| Output type | Push-Pull |
| Clock frequency (max) (MHz) | 260 |
| IOL (max) (mA) | 4 |
| IOH (max) (mA) | -4 |
| Supply current (max) (µA) | 0.9 |
| Features | Balanced outputs, Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns) |
| Operating temperature range (°C) | -40 to 85 |
| Rating | Catalog |

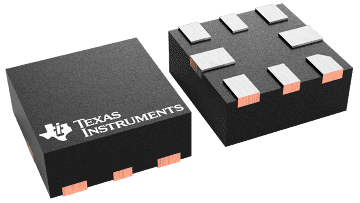

| UQFN (RSE) | 8 | 2.25 mm² 1.5 x 1.5 |

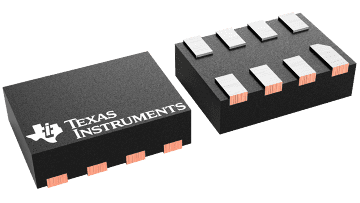

| VSSOP (DCU) | 8 | 6.2 mm² 2 x 3.1 |
| X2SON (DQE) | 8 | 1.4 mm² 1.4 x 1 |
