The AUP family is TI’s premier solution to the industry’s low-power needs in battery-powered portable applications. This family ensures a very low static- and dynamic-power consumption across the entire VCC range of 0.8 V to 3.6 V, resulting in increased battery life (see Figure 1). This product also maintains excellent signal integrity (see the very low undershoot and overshoot characteristics shown in Figure 2).
The SN74AUP2G02 performs the Boolean function Y = A + B or Y = A ⋅ B in positive logic.
NanoStar™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
NanoStar is a trademark of Texas Instruments.
| Technology family | AUP |
| Number of channels | 2 |
| Supply voltage (min) (V) | 0.8 |
| Supply voltage (max) (V) | 3.6 |
| Inputs per channel | 2 |
| IOL (max) (mA) | 4 |
| IOH (max) (mA) | -4 |
| Output type | Push-Pull |
| Input type | Standard CMOS |
| Features | Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns) |
| Data rate (max) (Mbps) | 100 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |

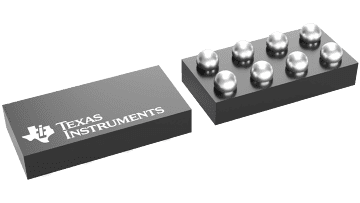

| DSBGA (YFP) | 8 | 1.8 mm² 1 x 1.8 |
| UQFN (RSE) | 8 | 2.25 mm² 1.5 x 1.5 |
| VSSOP (DCU) | 8 | 6.2 mm² 2 x 3.1 |
| X2SON (DQE) | 8 | 1.4 mm² 1.4 x 1 |
