SN74AUP2G08

正在供货

2 通道、2 输入、0.8V 至 3.6V 低功耗 (< 1uA) 与门

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The AUP family is TI’s premier solution to the industry’s low-power needs in battery-powered portable applications. This family ensures a very low static- and dynamic-power consumption across the entire V_CC range of 0.8 V to 3.6 V, resulting in increased battery life (see Figure 1). This product also maintains excellent signal integrity (see the very low undershoot and overshoot characteristics shown in Figure 2).

This dual 2-input positive-AND gate performs the Boolean function Y = A • B or Y = A + B in positive logic.

NanoStar™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.

This device is fully specified for partial-power-down applications using I_off. The I_off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Available in the Texas Instruments NanoStar™ Package
Low Static-Power Consumption
(I_CC = 0.9 µA Max)
Low Dynamic-Power Consumption
(C_pd = 4.3 pF Typ at 3.3 V)
Low Input Capacitance (C_i = 1.5 pF Typ)
Low Noise – Overshoot and Undershoot
<10% of V_CC
I_off Supports Partial-Power-Down Mode Operation
Schmitt-Trigger Action Allows Slow Input Transition and
Better Switching Noise Immunity at the Input
(V_hys = 250 mV Typ at 3.3 V)
Wide Operating V_CC Range of 0.8 V to 3.6 V
Optimized for 3.3-V Operation
3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
t_pd = 5.9 ns Max at 3.3 V
Suitable for Point-to-Point Applications
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD 22
- 2000-V Human-Body Model
  (A114-B, Class II)
- 1000-V Charged-Device Model (C101)

NanoStar is a trademark of Texas Instruments.

Technology family	AUP
Supply voltage (min) (V)	0.8
Supply voltage (max) (V)	3.6
Number of channels	2
Inputs per channel	2
IOL (max) (mA)	4
IOH (max) (mA)	-4
Input type	Standard CMOS
Output type	Push-Pull
Features	Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns)
Data rate (max) (Mbps)	100
Rating	Catalog
Operating temperature range (°C)	-40 to 85

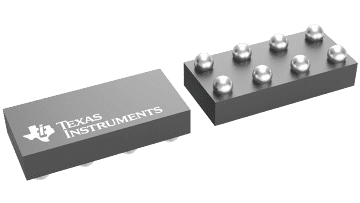

DSBGA (YFP)	8	1.8 mm² 1 x 1.8
DSBGA (YZP)	8	2.8125 mm² 2.25 x 1.25

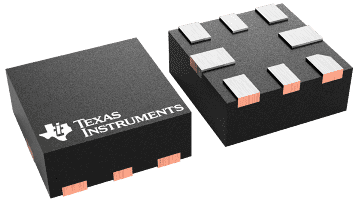

UQFN (RSE)	8	2.25 mm² 1.5 x 1.5

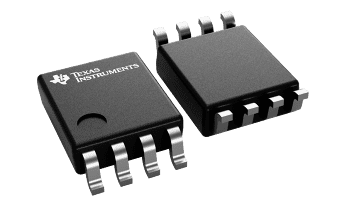

VSSOP (DCU)	8	6.2 mm² 2 x 3.1
X2SON (DQE)	8	1.4 mm² 1.4 x 1
