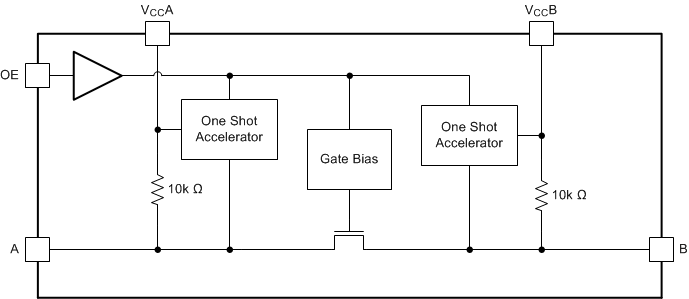

This one-bit non-inverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65 V to 3.6 V. The B port is designed to track VCCB. VCCA must be less than or equal to VCCB. VCCB accepts any supply voltage from 2.3 V to 5.5 V. This allows for low voltage bidirectional translation between any of the 1.8 V, 2.5 V, 3.3 V, and 5 V voltage nodes.
When the output-enable (OE) input is low, all outputs are placed in the high-impedance state.
To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pull-down resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.
| Technology family | TXS |
| Bits (#) | 1 |
| Data rate (max) (Mbps) | 24 |
| High input voltage (min) (V) | 1.45 |
| High input voltage (max) (V) | 5.5 |
| Vout (min) (V) | 1.65 |
| Vout (max) (V) | 5.5 |
| IOH (max) (mA) | 0 |
| IOL (max) (mA) | 0 |
| Supply current (max) (µA) | 14.4 |
| Features | Edge rate accelerator, Output enable, Partial power down (Ioff), Vcc isolation |
| Input type | Transmission Gate |
| Output type | 3-State, Transmission Gate |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |

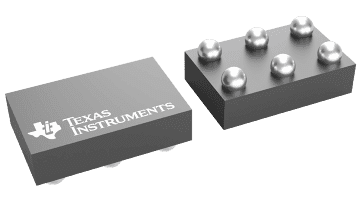

| DSBGA (YZP) | 6 | 2.1875 mm² 1.75 x 1.25 |

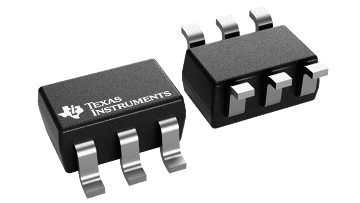

| SOT-23 (DBV) | 6 | 8.12 mm² 2.9 x 2.8 |

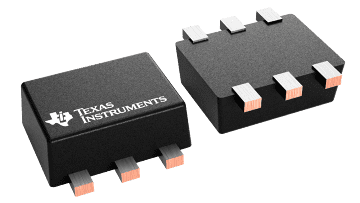

| SOT-5X3 (DRL) | 6 | 2.56 mm² 1.6 x 1.6 |
| SOT-SC70 (DCK) | 6 | 4.2 mm² 2 x 2.1 |
