The AUP family is TI's premier solution to the industry's low-power needs in battery-powered portable applications. This family ensures a very low static- and dynamic-power consumption across the entire VCC range of 0.8 V to 3.6 V, resulting in increased battery life. This product also maintains excellent signal integrity (see the very low undershoot and overshoot characteristics shown in ).
NanoStar Is a trademark of Texas Instruments. All other trademarks are the property of their respective owners
| Number of channels | 1 |
| Technology family | AUP |
| Supply voltage (min) (V) | 0.8 |
| Supply voltage (max) (V) | 3.6 |
| Input type | Standard CMOS |
| Output type | Push-Pull |
| Clock frequency (max) (MHz) | 160 |
| IOL (max) (mA) | 4 |
| IOH (max) (mA) | -4 |
| Supply current (max) (µA) | 0.9 |
| Features | Balanced outputs, Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns) |
| Operating temperature range (°C) | -40 to 85 |
| Rating | Catalog |

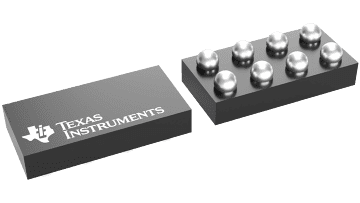

| DSBGA (YFP) | 8 | 1.8 mm² 1 x 1.8 |

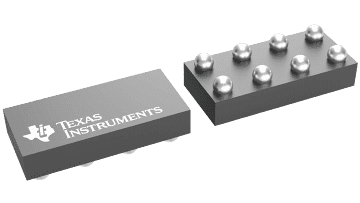

| DSBGA (YZP) | 8 | 2.8125 mm² 2.25 x 1.25 |

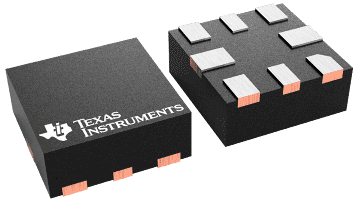

| UQFN (RSE) | 8 | 2.25 mm² 1.5 x 1.5 |

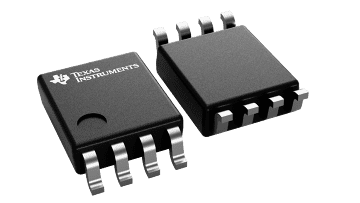

| VSSOP (DCU) | 8 | 6.2 mm² 2 x 3.1 |

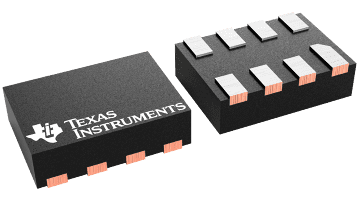

| X2SON (DQE) | 8 | 1.4 mm² 1.4 x 1 |
