The SN74LV4046A is a high-speed silicon-gate CMOS device that is pin compatible with the CD4046B and the CD74HC4046. The device is specified in compliance with JEDEC Std 7.

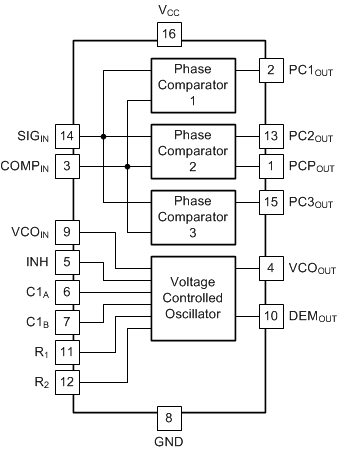

The SN74LV4046A is a phase-locked loop (PLL) circuit that contains a linear voltage-controlled oscillator (VCO) and three different phase comparators (PC1, PC2, and PC3). A signal input and a comparator input are common to each comparator.
The signal input can be directly coupled to large voltage signals, or indirectly coupled (with a series capacitor) to small voltage signals. A self-bias input circuit keeps small voltage signals within the linear region of the input amplifiers. With a passive low-pass filter, the SN74LV4046A forms a second-order loop PLL. The excellent VCO linearity is achieved by the use of linear operational amplifier techniques. Various applications include telecommunications, digital phase-locked loop and signal generators.
| Technology family | LV-A |
| Bits (#) | 1 |
| Supply voltage (min) (V) | 3 |
| Supply voltage (max) (V) | 5.5 |
| Input type | Standard CMOS |
| Output type | Push-Pull |
| Supply current (max) (µA) | 50 |
| IOL (max) (mA) | 12 |
| IOH (max) (mA) | -12 |
| Operating temperature range (°C) | -40 to 85 |
| Rating | Catalog |

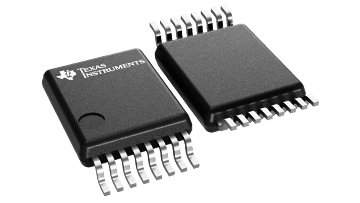

| PDIP (N) | 16 | 181.42 mm² 19.3 x 9.4 |
| SOIC (D) | 16 | 59.4 mm² 9.9 x 6 |
| SOP (NS) | 16 | 79.56 mm² 10.2 x 7.8 |
| TSSOP (PW) | 16 | 32 mm² 5 x 6.4 |
| TVSOP (DGV) | 16 | 23.04 mm² 3.6 x 6.4 |
