The LM5056/LM5056A combines high-performance analog and digital technology with a PMBus compliant SMBus™ and I2C interface to accurately measure the electrical operating conditions of systems connected to a backplane power bus. The LM5056/LM5056A continuously supplies real-time power, voltage, current, temperature and fault data to the system management host via the SMBus interface.

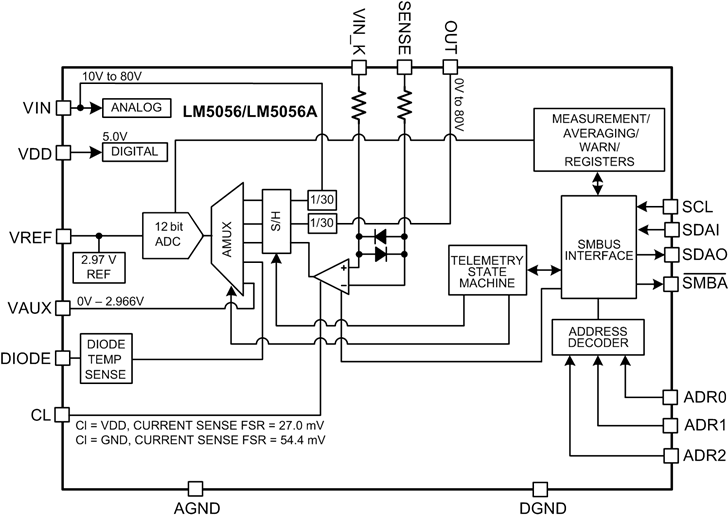

The LM5056/LM5056A monitoring block computes both the real time and average values of subsystem operating parameters (VIN, IIN, PIN, VOUT) as well as the peak power. Accurate power averaging is accomplished by averaging the product of the input voltage and current. A black-box (telemetry and fault snapshot) function captures and stores telemetry data and device status in the event of a warning or a fault.
PMBus is a trademark of Texas Instruments.

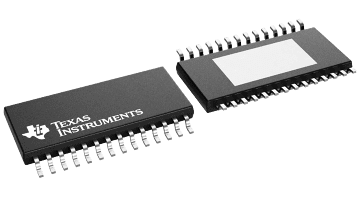

| Common-mode voltage (max) (V) | 80 |
| Common-mode voltage (min) (V) | 10 |
| Input offset (±) (max) (µV) | 300 |
| Voltage gain (V/V) | 0.5, 1 |
| Supply voltage (max) (V) | 5.5 |
| Supply voltage (min) (V) | 4.5 |
| Iq (max) (mA) | 6.8 |
| Digital interface | I2C, PMBus, SMBus |
| Gain error (%) | 1.25 |
| Features | Digital Temp Monitor |
| Resolution (Bits) | 12 |
| Power measurement accuracy (%) | 1.75 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 125 |
| HTSSOP (PWP) | 28 | 62.08 mm² 9.7 x 6.4 |
