SN74AUC1G19

正在供货

2 选 1 解码器/多路复用器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

This 1-of-2 decoder/demultiplexer is operational at 0.8-V to 2.7-V V_CC, but is designed specifically for 1.65-V to 1.95-V V_CC operation.

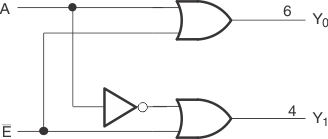

The SN74AUC1G19 is a 1-of-2 decoder/demultiplexer. This device buffers the data on input A and passes it to the outputs Y₀ (true) and Y₁ (complement) when the enable (E) input signal is low.

NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.

This device is fully specified for partial-power-down applications using I_off. The I_off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

For more information about AUC Little Logic devices, see Applications of Texas Instruments AUC Sub-1-V Little Logic Devices, SCEA027.

Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Available in the Texas Instruments NanoFree™ Package
Optimized for 1.8-V Operation and Is 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
I_off Supports Partial-Power-Down Mode Operation
Sub-1-V Operable
±8-mA Output Drive at 1.8 V V_CC
Maximum t_pd of 3 ns at 1.8 V
Low Power Consumption, 10-µA Maximum I_CC

Technology family	AUC
Number of channels	1
Operating temperature range (°C)	-40 to 85
Rating	Catalog
Supply current (max) (µA)	10

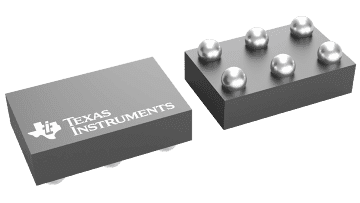

DSBGA (YZP)	6	2.1875 mm² 1.75 x 1.25

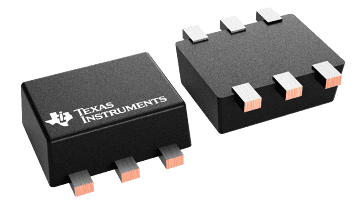

SOT-23 (DBV)	6	8.12 mm² 2.9 x 2.8
SOT-5X3 (DRL)	6	2.56 mm² 1.6 x 1.6
SOT-SC70 (DCK)	6	4.2 mm² 2 x 2.1
