SN74AUP1G79

正在供货

低功耗单路上升沿 D 级触发器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

The AUP family is TI’s premier solution to the industry’s low-power needs in battery-powered portable applications. This family assures a very-low static and dynamic power consumption across the entire V_CC range of 0.8 V to 3.6 V, thus resulting in an increased battery life. The AUP devices also maintain excellent signal integrity.

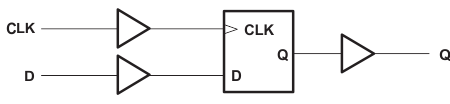

The SN74AUP1G79 is a single positive-edge-triggered D-type flip-flop. When data at the data (D) input meets the setup-time requirement, the data is transferred to the Q output on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of the clock pulse. Following the hold-time interval, data at the D input can be changed without affecting the levels at the outputs.

NanoStar™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.

The SN74AUP1G79 device is fully specified for partial-power-down applications using I_off. The I_off circuitry disables the outputs when the device is powered down. This inhibits current backflow into the device which prevents damage to the device.

Available in the Texas Instruments NanoStar™ Package
Low Static-Power Consumption:
I_CC = 0.9 µA Maximum
Low Dynamic-Power Consumption:
C_pd = 3 pF Typical at 3.3 V
Low Input Capacitance:
C_i = 1.5 pF Typical
Low Noise: Overshoot and Undershoot
< 10% of V_CC
I_off Supports Partial Power-Down-Mode Operation
Input Hysteresis Allows Slow Input Transition and Better Switching Noise Immunity at the Input
(V_hys = 250 mV Typical at 3.3 V)
Wide Operating V_CC Range of 0.8 V to 3.6 V
Optimized for 3.3-V Operation
3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
t_pd = 4 ns Maximum at 3.3 V
Suitable for Point-to-Point Applications
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD 22
- 2000-V Human-Body Model
  (A114-B, Class II)
- 1000-V Charged-Device Model (C101)

Number of channels	1
Technology family	AUP
Supply voltage (min) (V)	0.8
Supply voltage (max) (V)	3.6
Input type	Standard CMOS
Output type	Push-Pull
Clock frequency (max) (MHz)	260
IOL (max) (mA)	4
IOH (max) (mA)	-4
Supply current (max) (µA)	0.9
Features	Balanced outputs, Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns)
Operating temperature range (°C)	-40 to 85
Rating	Catalog

SOT-23 (DBV)	5	8.12 mm² 2.9 x 2.8
SOT-5X3 (DRL)	5	2.56 mm² 1.6 x 1.6

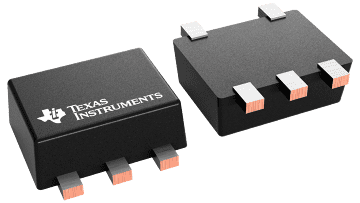

SOT-SC70 (DCK)	5	4.2 mm² 2 x 2.1

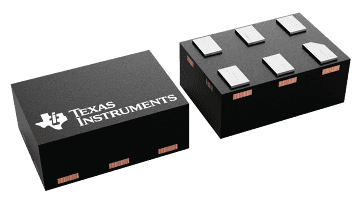

USON (DRY)	6	1.45 mm² 1.45 x 1

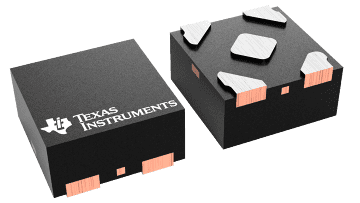

X2SON (DPW)	5	0.64 mm² 0.8 x 0.8

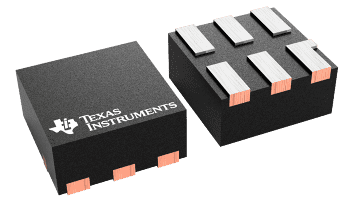

X2SON (DSF)	6	1 mm² 1 x 1
