This device is designed for 1.65-V to 5.5-V VCC operation.
The SN74LVC1G0832 device is a single 3-input positive AND-OR gate. It performs the Boolean function Y = (A • B ) + C in positive logic.
By tying one input to GND or VCC, the SN74LVC1G0832 device offers two more functions. When C is tied to GND, this device performs as a 2−input AND gate (Y = A • B). When A is tied to VCC, the device works as a 2−input OR gate (Y = B + C). This device also works as a 2−input OR gate when B is tied to VCC (Y = A + C).
NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
| Technology family | LVC |
| Supply voltage (min) (V) | 1.65 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 1 |
| Inputs per channel | 3 |
| IOL (max) (mA) | 32 |
| IOH (max) (mA) | -32 |
| Input type | Standard CMOS |
| Output type | Push-Pull |
| Features | Over-voltage tolerant inputs, Partial power down (Ioff), Ultra high speed (tpd <5ns) |
| Data rate (max) (Mbps) | 100 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 125 |

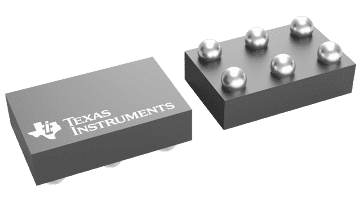

| DSBGA (YZP) | 6 | 2.1875 mm² 1.75 x 1.25 |
| SOT-23 (DBV) | 6 | 8.12 mm² 2.9 x 2.8 |
| SOT-SC70 (DCK) | 6 | 4.2 mm² 2 x 2.1 |
