SN74LVC07A-Q1

SN74LVC07A-Q1

正在供货

具有漏极开路输出的汽车类 6 通道、1.65V 至 5.5V 缓冲器

产品详情
  • 说明
  • 特性
  • 参数
  • 封装 | 引脚 | 尺寸

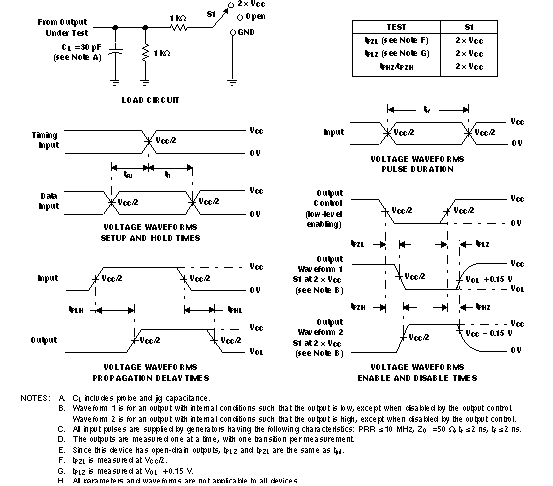

This hex buffer/driver is designed for 1.65-V to 5.5-V VCC operation.

The outputs of the SN74LVC07A device are open drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The maximum sink current is 24 mA.

Inputs can be driven from 1.8-V, 2.5-V, 3.3-V (LVTTL), or 5-V (CMOS) devices. This feature allows the use of this device as a translator in a mixed-system environment.

  • Qualified for Automotive Applications
  • Operates From 1.65 V to 5 V
  • Inputs and Open-Drain Outputs Accept Voltages up to 5.5 V
  • Latch-Up Performance Exceeds 250 mA Per JESD 17

Technology familyLVC
Supply voltage (min) (V)1.65
Supply voltage (max) (V)5.5
Number of channels6
IOL (max) (mA)24
Supply current (max) (µA)40
IOH (max) (mA)0
Input typeStandard CMOS
Output typeOpen-drain
FeaturesOver-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns)
RatingAutomotive
Operating temperature range (°C)-40 to 125
TSSOP (PW)1432 mm² 5 x 6.4
