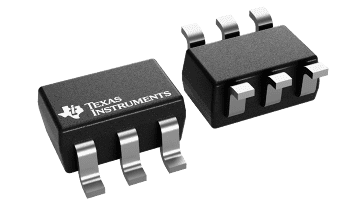

SN74LVC2G14-Q1

正在供货

具有施密特触发输入的汽车类 2 通道 1.65V 至 5.5V 反相器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

This dual Schmitt-trigger inverter is designed for 1.65-V to 5.5-V V_CC operation.

The SN74LVC2G14 contains two inverters and performs the Boolean function Y = A. The device functions as two independent inverters, but because of Schmitt action, it may have different input threshold levels for positive-going (V_T+) and negative-going (V_T-) signals.

This device is fully specified for partial-power-down applications using I_off. The I_off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Qualified for Automotive Applications
Supports 5-V V_CC Operation
Inputs Accept Voltages to 5.5 V
Max t_pd of 5.4 ns at 3.3 V
Low Power Consumption, 10-µA Max I_CC
±24-mA Output Drive at 3.3 V
Typical V_OLP (Output Ground Bounce)
<0.8 V at V_CC = 3.3 V, T_A = 25°C
Typical V_OHV (Output V_OH Undershoot)
>2 V at V_CC = 3.3 V, T_A = 25°C
I_off Feature Supports Partial-Power-Down Mode Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 1000-V Charged-Device Model (C101)

Technology family	LVC
Supply voltage (min) (V)	1.65
Supply voltage (max) (V)	5.5
Number of channels	2
IOL (max) (mA)	32
IOH (max) (mA)	-32
Supply current (max) (µA)	10
Input type	Schmitt-Trigger
Output type	Push-Pull
Features	Balanced outputs, Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns)
Rating	Automotive
Operating temperature range (°C)	-40 to 85

SOT-SC70 (DCK)

4.2 mm² 2 x 2.1
