This single 2-input positive-AND gate is designed for 0.8-V to 3.6-V VCC operation and performs the Boolean function Y = A • B or Y = A + B in positive logic.
| Technology family | AUP |
| Supply voltage (min) (V) | 0.8 |
| Supply voltage (max) (V) | 3.6 |
| Number of channels | 1 |
| Inputs per channel | 2 |
| IOL (max) (mA) | 4 |
| IOH (max) (mA) | -4 |
| Input type | Standard CMOS |
| Output type | Push-Pull |
| Features | Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns) |
| Data rate (max) (Mbps) | 100 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |

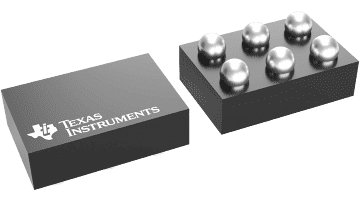

| DSBGA (YFP) | 6 | 1.4000000000000001 mm² 1 x 1.4000000000000001 |

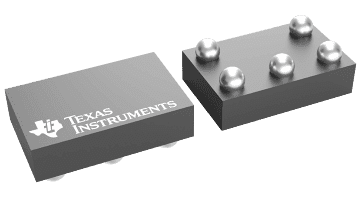

| DSBGA (YZP) | 5 | 2.1875 mm² 1.75 x 1.25 |

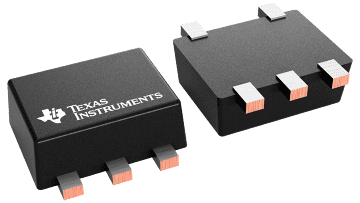

| SOT-23 (DBV) | 5 | 8.12 mm² 2.9 x 2.8 |
| SOT-5X3 (DRL) | 5 | 2.56 mm² 1.6 x 1.6 |
| SOT-SC70 (DCK) | 5 | 4.2 mm² 2 x 2.1 |

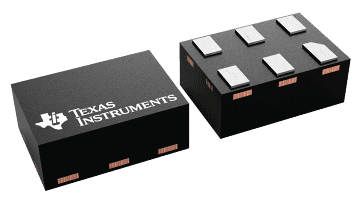

| USON (DRY) | 6 | 1.45 mm² 1.45 x 1 |

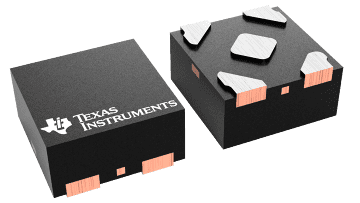

| X2SON (DPW) | 5 | 0.64 mm² 0.8 x 0.8 |

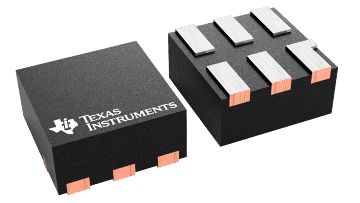

| X2SON (DSF) | 6 | 1 mm² 1 x 1 |
