The SN74AUP1G57 device features configurable multiple functions. The output state is determined by eight patterns of 3-bit input. The user can choose the logic functions AND, OR, NAND, NOR, XNOR, inverter, and noninverter. All inputs can be connected to VCC or GND.
All other trademarks are the property of their respective owners
| Technology family | AUP |
| Supply voltage (min) (V) | 0.8 |
| Supply voltage (max) (V) | 3.6 |
| Number of channels | 1 |
| Inputs per channel | 1 |
| IOL (max) (mA) | 4 |
| IOH (max) (mA) | -4 |
| Input type | Schmitt-Trigger |
| Output type | Push-Pull |
| Features | Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns) |
| Data rate (max) (Mbps) | 100 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |

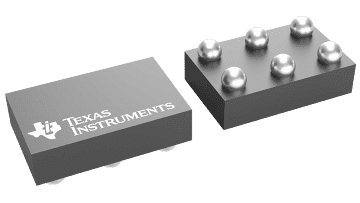

| DSBGA (YZP) | 6 | 2.1875 mm² 1.75 x 1.25 |
| SOT-23 (DBV) | 6 | 8.12 mm² 2.9 x 2.8 |
| SOT-5X3 (DRL) | 6 | 2.56 mm² 1.6 x 1.6 |

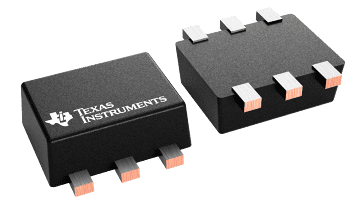

| SOT-SC70 (DCK) | 6 | 4.2 mm² 2 x 2.1 |

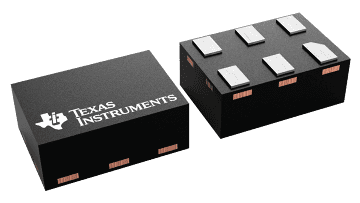

| USON (DRY) | 6 | 1.45 mm² 1.45 x 1 |

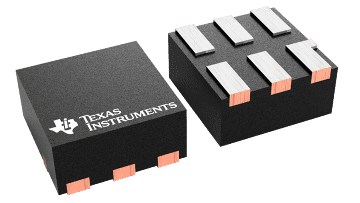

| X2SON (DSF) | 6 | 1 mm² 1 x 1 |
