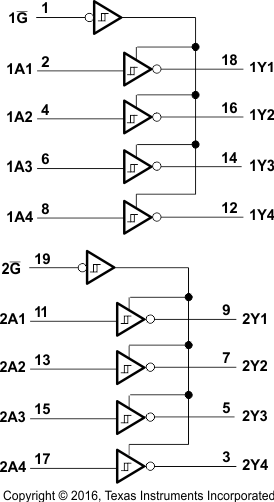

The SNx4LS24x, SNx4S24x octal buffers and line drivers are designed specifically to improve both the performance and density of three-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The designer has a choice of selected combinations of inverting and non-inverting outputs, symmetrical, active-low output-control (G) inputs, and complementary output-control (G and G) inputs. These devices feature high fan-out, improved fan-in, and 400-mV noise margin. The SN74LS24x and SN74S24x devices can be used to drive terminated lines down to 133 Ω.
| Technology family | LS |
| Supply voltage (min) (V) | 4.5 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 8 |
| IOL (max) (mA) | 24 |
| IOH (max) (mA) | -15 |
| Supply current (max) (µA) | 50000 |
| Input type | Bipolar |
| Output type | 3-State |
| Features | High speed (tpd 10-50ns) |
| Rating | Space |
| Operating temperature range (°C) | -55 to 125 |

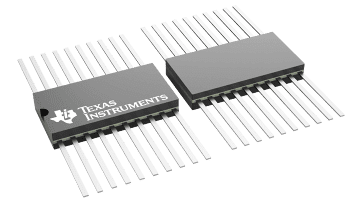

| CFP (W) | 20 | 90.5828 mm² 13.09 x 6.92 |
