These octal bus transceivers are designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements.

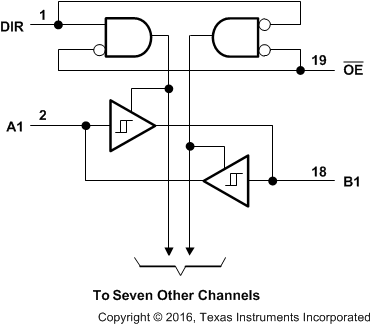

The SNx4LS245 devices allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can disable the device so that the buses are effectively isolated.
| Supply voltage (min) (V) | 4.5 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 8 |
| IOL (max) (mA) | 12 |
| IOH (max) (mA) | -12 |
| Input type | TTL |
| Output type | TTL |
| Features | Balanced outputs, High speed (tpd 10-50ns) |
| Technology family | LS |
| Rating | Space |
| Operating temperature range (°C) | -55 to 125 |
| CFP (W) | 20 | 90.5828 mm² 13.09 x 6.92 |
