SN74LVC2G80

SN74LVC2G80

正在供货

双路上升沿触发 D 型触发器

产品详情
  • 说明
  • 特性
  • 参数
  • 封装 | 引脚 | 尺寸

This dual positive-edge-triggered D-type flip-flop is designed for 1.65-V to 5.5-V VCC operation.

When data at the data (D) input meets the setup time requirement, the data is transferred to the Q output on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of the clock pulse. Following the hold-time interval, data at the D input can be changed without affecting the levels at the outputs.

NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.

This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

  • Available in the Texas Instruments
    NanoFree Package
  • Supports 5-V VCC Operation
  • Inputs Accept Voltages to 5.5 V
  • Max tpd of 4.2 ns at 3.3 V
  • Low Power Consumption, 10-μA Max ICC
  • Typical VOLP (Output Ground Bounce)
    <0.8 V at VCC = 3.3 V, TA = 25°C
  • Typical VOHV (Output VOH Undershoot)
    >2 V at VCC = 3.3 V, TA = 25°C
  • Ioff Feature Supports Live Insertion, Partial-Power-Down and Back Drive Protection
    Mode Operation
  • Latch-Up Performance Exceeds 100 mA
    Per JESD 78, Class II
  • ESD Protection Exceeds JESD 22
    • 2000-V Human-Body Model (A114-A)
    • 200-V Machine Model (A115-A)
    • 1000-V Charged-Device Model (C101)

Number of channels2
Technology familyLVC
Supply voltage (min) (V)1.65
Supply voltage (max) (V)5.5
Input typeStandard CMOS
Output typePush-Pull
Clock frequency (max) (MHz)150
IOL (max) (mA)32
IOH (max) (mA)-32
Supply current (max) (µA)5
FeaturesBalanced outputs, Over-voltage tolerant inputs
Operating temperature range (°C)-40 to 125
RatingCatalog

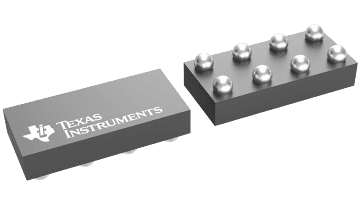

DSBGA (YZP)82.8125 mm² 2.25 x 1.25

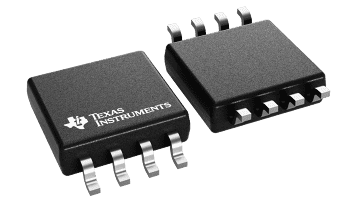

SSOP (DCT)811.8 mm² 2.95 x 4
VSSOP (DCU)86.2 mm² 2 x 3.1
