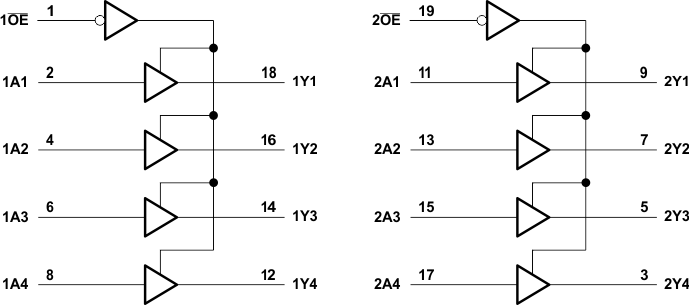

These octal buffers and drivers are designed specifically to improve the performance and density of 3-state memory-address drivers, clock drivers, and bus-oriented receivers and transmitters.
| Technology family | AHC |
| Supply voltage (min) (V) | 2 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 8 |
| IOL (max) (mA) | 8 |
| Supply current (max) (µA) | 40 |
| IOH (max) (mA) | -8 |
| Input type | Standard CMOS |
| Output type | 3-State |
| Features | Balanced outputs, Over-voltage tolerant inputs, Very high speed (tpd 5-10ns) |
| Rating | Space |
| Operating temperature range (°C) | -55 to 125 |
| CDIP (J) | 20 | 167.464 mm² 24.2 x 6.92 |
| CFP (W) | 20 | 90.5828 mm² 13.09 x 6.92 |
