This decoder/demultiplexer is designed for 1.65-V to 5.5-V VCC operation.
The SN74LVC1G19 device is a 1-of-2 decoder / demultiplexer. When E input is high, the decoder will be disabled and both outputs will be high. When E input is low, the A input selects which output will be low.
This device is fully specified for partial-power-down applications using Ioff.
| Technology family | LVC |
| Number of channels | 1 |
| Operating temperature range (°C) | -40 to 85 |
| Rating | Catalog |
| Supply current (max) (µA) | 10 |

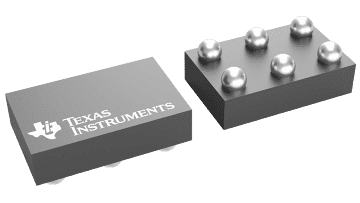

| DSBGA (YZP) | 6 | 2.1875 mm² 1.75 x 1.25 |

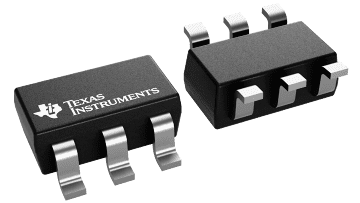

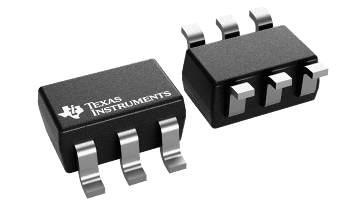

| SOT-23 (DBV) | 6 | 8.12 mm² 2.9 x 2.8 |
| SOT-5X3 (DRL) | 6 | 2.56 mm² 1.6 x 1.6 |

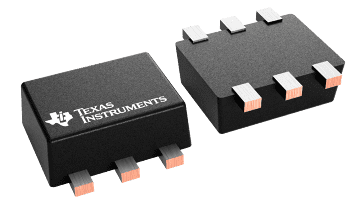

| SOT-SC70 (DCK) | 6 | 4.2 mm² 2 x 2.1 |

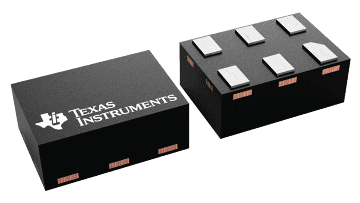

| USON (DRY) | 6 | 1.45 mm² 1.45 x 1 |
