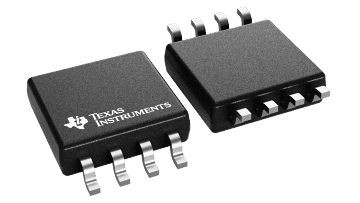

SN74AUC2G32

正在供货

双通道、双输入、0.8V 至 2.7V、超高速 (2.4ns) 或门

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

This dual 2-input positive-OR gate is operational at 0.8-V to 2.7-V V_CC, but is designed specifically for 1.65-V to 1.95-V V_CC operation.

The SN74AUC2G32 performs the Boolean function Y = A + B or Y = A × B in positive logic.

NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.

This device is fully specified for partial-power-down applications using I_off. The I_off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

For more information about AUC Little Logic devices, please refer to the TI application report, Applications of Texas Instruments AUC Sub-1-V Little Logic Devices, literature number SCEA027.

Available in the Texas Instruments NanoFree™ Package
Optimized for 1.8-V Operation and is 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
I_off Supports Partial-Power-Down Mode Operation
Sub-1-V Operable
Max t_pd of 1.5 ns at 1.8 V
Low Power Consumption, 10 µA at 1.8 V
±8-mA Output Drive at 1.8 V
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)

NanoFree is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.

Technology family	AUC
Supply voltage (min) (V)	0.8
Supply voltage (max) (V)	2.7
Number of channels	2
Inputs per channel	2
IOL (max) (mA)	9
IOH (max) (mA)	-9
Input type	Standard CMOS
Output type	Push-Pull
Features	Over-voltage tolerant inputs, Partial power down (Ioff), Ultra high speed (tpd <5ns)
Data rate (max) (Mbps)	250
Rating	Catalog
Operating temperature range (°C)	-40 to 85

SSOP (DCT)	8	11.8 mm² 2.95 x 4
VSSOP (DCU)	8	6.2 mm² 2 x 3.1
