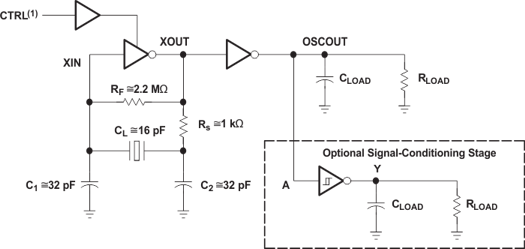

The SN74LVC1404 device consists of one inverter with a Schmitt-trigger input and two unbuffered inverters. It is designed for 1.65-V to 5.5-V VCC operation.
| Technology family | LVC |
| Supply voltage (min) (V) | 1.65 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 2 |
| IOL (max) (mA) | 32 |
| IOH (max) (mA) | -32 |
| Supply current (max) (µA) | 10 |
| Input type | Schmitt-Trigger |
| Output type | Push-Pull |
| Features | Balanced outputs, Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns) |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 125 |

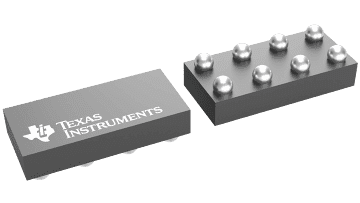

| DSBGA (YZP) | 8 | 2.8125 mm² 2.25 x 1.25 |

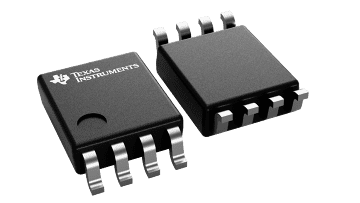

| SSOP (DCT) | 8 | 11.8 mm² 2.95 x 4 |

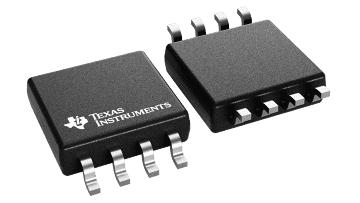

| VSSOP (DCU) | 8 | 6.2 mm² 2 x 3.1 |
