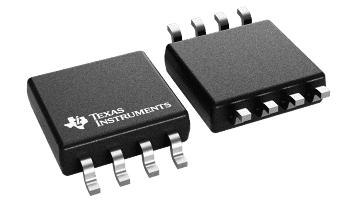

SN74AUC2G00

正在供货

2 通道、2 输入、0.8V 至 2.7V 高速与非门

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

This dual 2-input positive-NAND gate is operational at 0.8-V to 2.7-V V_CC, but is designed specifically for 1.65-V to 1.95-V V_CC operation.

The SN74AUC2G00 performs the Boolean function Y = A • B or Y = A + B in positive logic.

NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.

This device is fully specified for partial-power-down applications using I_off. The I_off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Available in the Texas Instruments NanoFree™ Package
Optimized for 1.8-V Operation and Is 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
I_off Supports Partial-Power-Down Mode Operation
Sub-1-V Operable
Max t_pd of 1.2 ns at 1.8 V
Low Power Consumption, 10 µA at 1.8 V
±8-mA Output Drive at 1.8 V
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)

NanoFree is a trademark of Texas Instruments.

Technology family	AUC
Supply voltage (min) (V)	0.8
Supply voltage (max) (V)	2.7
Number of channels	2
Inputs per channel	2
IOL (max) (mA)	9
IOH (max) (mA)	-9
Input type	Standard CMOS
Output type	Push-Pull
Features	Over-voltage tolerant inputs, Partial power down (Ioff), Ultra high speed (tpd <5ns)
Data rate (max) (Mbps)	250
Rating	Catalog
Operating temperature range (°C)	-40 to 85

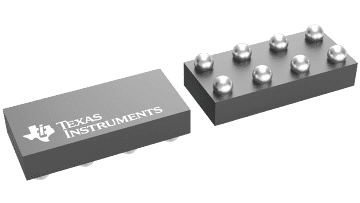

DSBGA (YZP)	8	2.8125 mm² 2.25 x 1.25

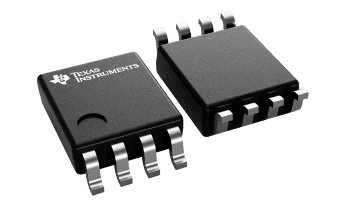

SSOP (DCT)	8	11.8 mm² 2.95 x 4
VSSOP (DCU)	8	6.2 mm² 2 x 3.1
