The SN74LVC1G386 device performs the Boolean function Y = A × B × C in positive logic.
NanoStar™ and NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
| Technology family | LVC |
| Supply voltage (min) (V) | 1.65 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 1 |
| Inputs per channel | 3 |
| IOL (max) (mA) | 32 |
| Input type | Standard CMOS |
| IOH (max) (mA) | -32 |
| Output type | Push-Pull |
| Features | Over-voltage tolerant Inputs, Partial power down (Ioff), Ultra high speed (tpd <5ns) |
| Data rate (max) (Mbps) | 100 |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 125 |

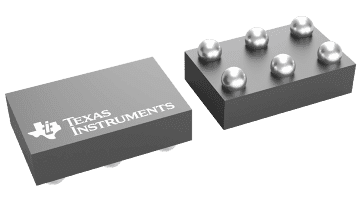

| DSBGA (YZP) | 6 | 2.1875 mm² 1.75 x 1.25 |

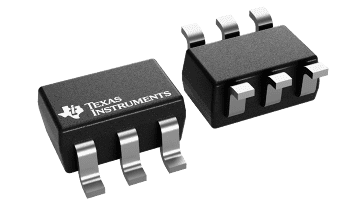

| SOT-23 (DBV) | 6 | 8.12 mm² 2.9 x 2.8 |

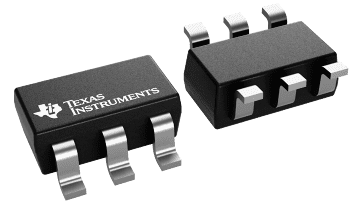

| SOT-SC70 (DCK) | 6 | 4.2 mm² 2 x 2.1 |

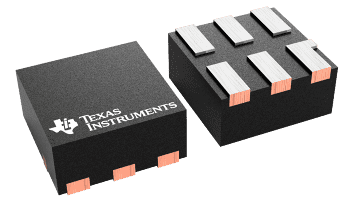

| USON (DRY) | 6 | 1.45 mm² 1.45 x 1 |
| X2SON (DSF) | 6 | 1 mm² 1 x 1 |
