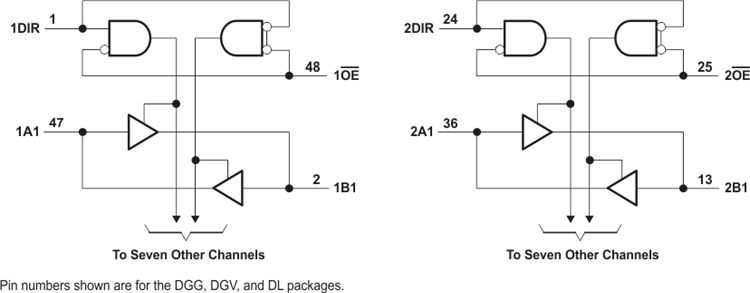

This 16-bit (dual-octal) noninverting bus transceiver is designed for 1.65-V to 3.6-V VCC operation.
The SN74LVCR16245A device is designed for asynchronous communication between data buses. All inputs and outputs have equivalent 26-Ω resistors that will slow the edges of the output and reduce switching noise caused by long capacitive etch runs or cables.
This device can be used as two 8-bit transceivers or one 16-bit transceiver. Active bus-hold circuitry holds unused or undriven data inputs at a valid logic state.
For all available packages, see the orderable addendum at the end of the datasheet.| Supply voltage (min) (V) | 1.65 |
| Supply voltage (max) (V) | 3.6 |
| Number of channels | 16 |
| IOL (max) (mA) | 12 |
| IOH (max) (mA) | -12 |
| Input type | TTL/CMOS |
| Output type | LVTTL |
| Features | Balanced outputs |
| Technology family | LVC |
| Rating | Catalog |
| Operating temperature range (°C) | -40 to 85 |

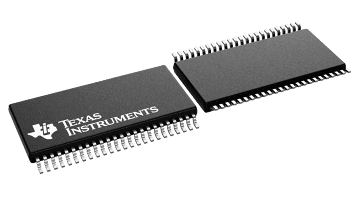

| SSOP (DL) | 48 | 164.358 mm² 15.88 x 10.35 |

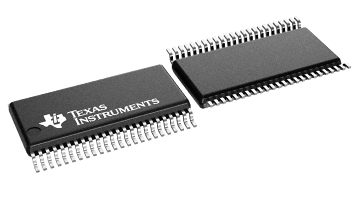

| TSSOP (DGG) | 48 | 101.25 mm² 12.5 x 8.1 |

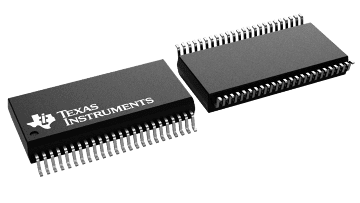

| TVSOP (DGV) | 48 | 62.08 mm² 9.7 x 6.4 |
