SN74LVC2G240

正在供货

具有三态输出的 2 通道、1.65V 至 5.5V 反相器

立即搜索现货

产品详情|
产品购买|

产品详情

说明
特性
参数
封装 | 引脚 | 尺寸

This dual buffer driver is designed for 1.65-V to 5.5-V V_CC operation.

The SN74LVC2G240 device is designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.

NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.

This device is organized as two 1-bit buffers/drivers with separate output-enable (OE) inputs. When OE is low, the device passes data from the A input to the Y output. When OE is high, the outputs are in the high-impedance state.

To ensure the high-impedance state during power up or power down, OE should be tied to V_CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

This device is fully specified for partial-power-down applications using I_off. The I_off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Available in the Texas Instruments NanoFree Package
Supports 5-V V_CC Operation
Inputs Accept Voltages to 5.5 V
Max t_pd of 4.6 ns at 3.3 V
Low Power Consumption, 10-µA Max I_CC
±24-mA Output Drive at 3.3 V
Typical V_OLP (Output Ground Bounce)
<0.8 V at V_CC = 3.3 V, T_A = 25°C
Typical V_OHV (Output V_OH Undershoot)
>2 V at V_CC = 3.3 V, T_A = 25°C
I_off Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
Can Be Used as a Down Translator to Translate Inputs From a Max of 5.5 V Down to the V_CC Level
Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 1000-V Charged-Device Model (C101)

Technology family	LVC
Supply voltage (min) (V)	1.65
Supply voltage (max) (V)	5.5
Number of channels	2
IOL (max) (mA)	32
IOH (max) (mA)	-32
Supply current (max) (µA)	10
Input type	Standard CMOS
Output type	3-State
Features	Balanced outputs, Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns)
Rating	Catalog
Operating temperature range (°C)	-40 to 125

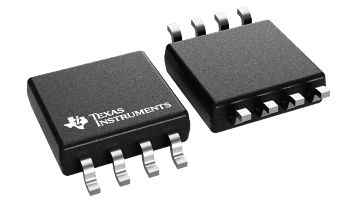

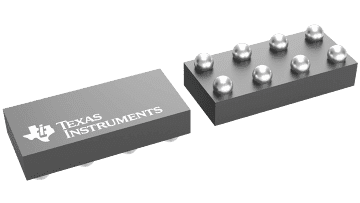

DSBGA (YZP)	8	2.8125 mm² 2.25 x 1.25
SSOP (DCT)	8	11.8 mm² 2.95 x 4
VSSOP (DCU)	8	6.2 mm² 2 x 3.1
