The SN74AHC00 performs the Boolean function Y = (A • B) or Y = A + B in positive logic.
EPIC is a trademark of Texas Instruments.
Component qualification in accordance with JEDEC and industry standards to ensure reliable operation over an extended temperature range. This includes, but is not limited to, Highly Accelerated Stress Test (HAST) or biased 85/85, temperature cycle, autoclave or unbiased HAST, electromigration, bond intermetallic life, and mold compound life.
| Technology family | AHC |
| Supply voltage (min) (V) | 2 |
| Supply voltage (max) (V) | 5.5 |
| Number of channels | 4 |
| Inputs per channel | 2 |
| IOL (max) (mA) | 50 |
| IOH (max) (mA) | -50 |
| Input type | Standard CMOS |
| Output type | Push-Pull |
| Features | Over-voltage tolerant inputs, Very high speed (tpd 5-10ns) |
| Data rate (max) (Mbps) | 110 |
| Rating | HiRel Enhanced Product |
| Operating temperature range (°C) | -55 to 125 |

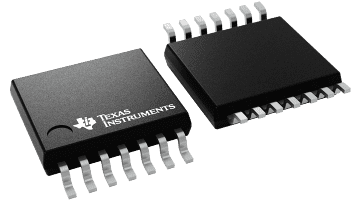

| SOIC (D) | 14 | 51.9 mm² 8.65 x 6 |
| TSSOP (PW) | 14 | 32 mm² 5 x 6.4 |
